Definition Type: ComplexType
Name: EnrollmentPersonType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Enrollment.xsd
Abstract

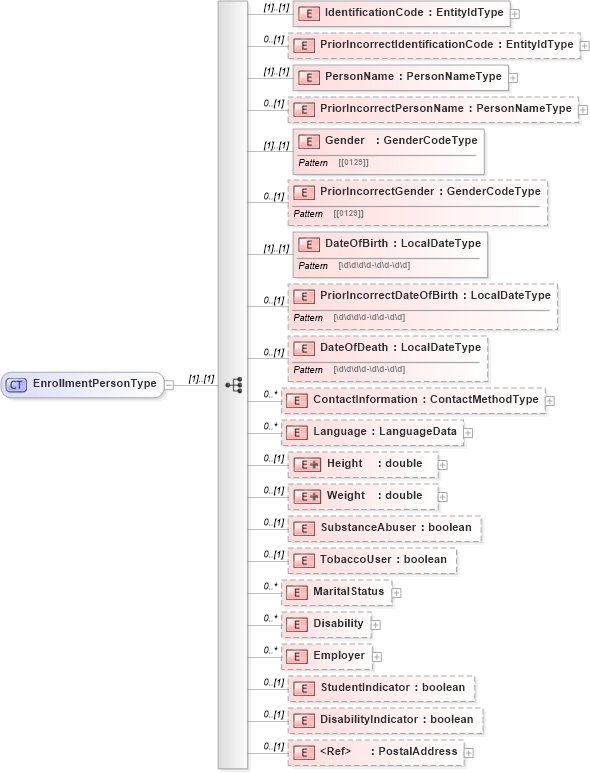

Collapse XSD Schema Diagram:
Drilldown into PostalAddress in schema postaladdress_xsd Drilldown into DisabilityIndicator in schema enrollment_xsd Drilldown into StudentIndicator in schema enrollment_xsd Drilldown into Employer in schema enrollment_xsd Drilldown into Disability in schema enrollment_xsd Drilldown into MaritalStatus in schema enrollment_xsd Drilldown into TobaccoUser in schema enrollment_xsd Drilldown into SubstanceAbuser in schema enrollment_xsd Drilldown into Weight in schema enrollment_xsd Drilldown into Height in schema enrollment_xsd Drilldown into Language in schema enrollment_xsd Drilldown into ContactInformation in schema enrollment_xsd Drilldown into DateOfDeath in schema enrollment_xsd Drilldown into PriorIncorrectDateOfBirth in schema enrollment_xsd Drilldown into DateOfBirth in schema enrollment_xsd Drilldown into PriorIncorrectGender in schema enrollment_xsd Drilldown into Gender in schema enrollment_xsd Drilldown into PriorIncorrectPersonName in schema enrollment_xsd Drilldown into PersonName in schema enrollment_xsd Drilldown into PriorIncorrectIdentificationCode in schema enrollment_xsd Drilldown into IdentificationCode in schema enrollment_xsdXSD Diagram of EnrollmentPersonType in schema enrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EnrollmentPersonType">
    <xsd:sequence>
        <xsd:element name="IdentificationCode" type="EntityIdType" />
        <xsd:element name="PriorIncorrectIdentificationCode" type="EntityIdType" minOccurs="0" />
        <xsd:element name="PersonName" type="PersonNameType" />
        <xsd:element name="PriorIncorrectPersonName" type="PersonNameType" minOccurs="0" />
        <xsd:element name="Gender" type="GenderCodeType" />
        <xsd:element name="PriorIncorrectGender" type="GenderCodeType" minOccurs="0" />
        <xsd:element name="DateOfBirth" type="LocalDateType" />
        <xsd:element name="PriorIncorrectDateOfBirth" type="LocalDateType" minOccurs="0" />
        <xsd:element name="DateOfDeath" type="LocalDateType" minOccurs="0" />
        <xsd:element name="ContactInformation" type="ContactMethodType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Language" type="LanguageData" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Height" minOccurs="0">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:double">
                        <xsd:attribute name="units" use="required">
                            <xsd:simpleType>
                                <xsd:restriction base="xsd:string">
                                    <xsd:enumeration value="inches" />
                                    <xsd:enumeration value="centimeters" />
                                </xsd:restriction>
                            </xsd:simpleType>
                        </xsd:attribute>
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Weight" minOccurs="0">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:double">
                        <xsd:attribute name="units" use="required">
                            <xsd:simpleType>
                                <xsd:restriction base="xsd:string">
                                    <xsd:enumeration value="pounds" />
                                    <xsd:enumeration value="kilograms" />
                                </xsd:restriction>
                            </xsd:simpleType>
                        </xsd:attribute>
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="SubstanceAbuser" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="TobaccoUser" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="MaritalStatus" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="MaritalStatusCode">
                        <xsd:simpleType>
                            <xsd:restriction base="xsd:string">
                                <xsd:enumeration value="Divorced" />
                                <xsd:enumeration value="Legally Separated" />
                                <xsd:enumeration value="Married" />
                                <xsd:enumeration value="Registered Domestic Partner" />
                                <xsd:enumeration value="Separated" />
                                <xsd:enumeration value="Single" />
                                <xsd:enumeration value="Unmarried" />
                                <xsd:enumeration value="Unreported" />
                                <xsd:enumeration value="Widowed" />
                            </xsd:restriction>
                        </xsd:simpleType>
                    </xsd:element>
                    <xsd:element name="StartDate" type="LocalDateNkNaType" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Disability" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="DisabilityType">
                        <xsd:simpleType>
                            <xsd:restriction base="xsd:string">
                                <xsd:enumeration value="Short Term Disability" />
                                <xsd:enumeration value="Long Term Disability" />
                                <xsd:enumeration value="Permanent or Total Disability" />
                                <xsd:enumeration value="No Disability" />
                            </xsd:restriction>
                        </xsd:simpleType>
                    </xsd:element>
                    <xsd:element name="StartDate" type="LocalDateNkNaType" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Employer" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:choice>
                        <xsd:element name="OrganizationName" type="xsd:string" />
                        <xsd:element name="PersonName" type="PersonNameType" />
                    </xsd:choice>
                    <xsd:element name="ContactInformation" type="ContactMethodType" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="StartDate" type="LocalDateType" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="StudentIndicator" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="DisabilityIndicator" type="xsd:boolean" minOccurs="0" />
        <xsd:element ref="PostalAddress" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IdentificationCode hr:IdentificationCode (1) (1)
PriorIncorrectIdentificationCode hr:PriorIncorrectIdentificationCode 0 (1)
PersonName hr:PersonName (1) (1)
PriorIncorrectPersonName hr:PriorIncorrectPersonName 0 (1)
Gender hr:Gender (1) (1)
PriorIncorrectGender hr:PriorIncorrectGender 0 (1)
DateOfBirth hr:DateOfBirth (1) (1)
PriorIncorrectDateOfBirth hr:PriorIncorrectDateOfBirth 0 (1)
DateOfDeath hr:DateOfDeath 0 (1)
ContactInformation hr:ContactInformation 0 unbounded
Language hr:Language 0 unbounded
Height hr:Height 0 (1)
Weight hr:Weight 0 (1)
SubstanceAbuser hr:SubstanceAbuser 0 (1)
TobaccoUser hr:TobaccoUser 0 (1)
MaritalStatus hr:MaritalStatus 0 unbounded
Disability hr:Disability 0 unbounded
Employer hr:Employer 0 unbounded
StudentIndicator hr:StudentIndicator 0 (1)
DisabilityIndicator hr:DisabilityIndicator 0 (1)
PostalAddress hr:PostalAddress 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:Person
