Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EPMDevelopmentPlanType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EPMDevelopmentPlan.xsd
Abstract

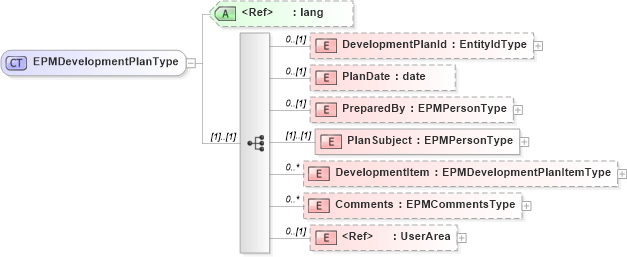

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into Comments in schema epmdevelopmentplan_xsd Drilldown into DevelopmentItem in schema epmdevelopmentplan_xsd Drilldown into PlanSubject in schema epmdevelopmentplan_xsd Drilldown into PreparedBy in schema epmdevelopmentplan_xsd Drilldown into PlanDate in schema epmdevelopmentplan_xsd Drilldown into DevelopmentPlanId in schema epmdevelopmentplan_xsd Drilldown into lang in schema xml_xsdXSD Diagram of EPMDevelopmentPlanType in schema epmdevelopmentplan_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EPMDevelopmentPlanType">
    <xsd:sequence>
        <xsd:element name="DevelopmentPlanId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="PlanDate" type="xsd:date" minOccurs="0" />
        <xsd:element name="PreparedBy" type="EPMPersonType" minOccurs="0" />
        <xsd:element name="PlanSubject" type="EPMPersonType" />
        <xsd:element name="DevelopmentItem" type="EPMDevelopmentPlanItemType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="Comments" type="EPMCommentsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DevelopmentPlanId hr:DevelopmentPlanId 0 (1)
PlanDate hr:PlanDate 0 (1)
PreparedBy hr:PreparedBy 0 (1)
PlanSubject hr:PlanSubject (1) (1)
DevelopmentItem hr:DevelopmentItem 0 unbounded
Comments hr:Comments 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
Collapse References:
hr:CreateEPMDevelopmentPlan, hr:EPMDevelopmentPlan, hr:ShowEPMDevelopmentPlan, hr:UpdateEPMDevelopmentPlan
