Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ExerciseConfirmationType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: ExerciseConfirmation.xsd
Abstract

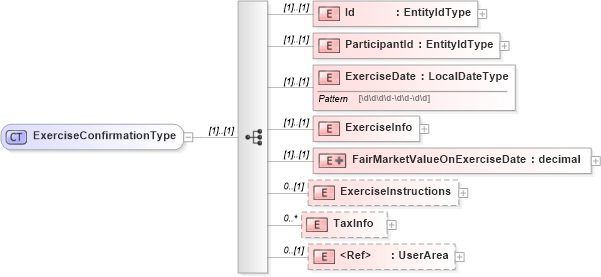

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into TaxInfo in schema exerciseconfirmation_xsd Drilldown into ExerciseInstructions in schema exerciseconfirmation_xsd Drilldown into FairMarketValueOnExerciseDate in schema exerciseconfirmation_xsd Drilldown into ExerciseInfo in schema exerciseconfirmation_xsd Drilldown into ExerciseDate in schema exerciseconfirmation_xsd Drilldown into ParticipantId in schema exerciseconfirmation_xsd Drilldown into Id in schema exerciseconfirmation_xsdXSD Diagram of ExerciseConfirmationType in schema exerciseconfirmation_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ExerciseConfirmationType">
    <xsd:sequence>
        <xsd:element name="Id" type="EntityIdType" />
        <xsd:element name="ParticipantId" type="EntityIdType" />
        <xsd:element name="ExerciseDate" type="LocalDateType" />
        <xsd:element name="ExerciseInfo">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="GrantId" type="EntityIdType" />
                    <xsd:element name="OptionsExercised" type="xsd:decimal" />
                    <xsd:element name="GrantPrice" minOccurs="0">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="SharesTradedForTax" type="xsd:decimal" />
                    <xsd:element name="SharesSwapped" type="xsd:decimal" />
                    <xsd:element name="SharesSold" type="xsd:decimal" />
                    <xsd:element name="SARPercentCashRequested" type="xsd:decimal" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="FairMarketValueOnExerciseDate">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:decimal">
                        <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="ExerciseInstructions" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="SellToCoverOptions" type="xsd:boolean" />
                    <xsd:element name="SellToCoverTaxes" type="xsd:boolean" />
                    <xsd:element name="SellToCoverFees" type="xsd:boolean" />
                    <xsd:element name="UseSharesForTaxes" type="xsd:boolean" />
                    <xsd:element name="UseSharesFirst" type="xsd:boolean" />
                    <xsd:element name="TaxRelevantPrice">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="TaxInfo" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="TaxDate" type="LocalDateType" />
                    <xsd:element name="TaxType" type="xsd:string" />
                    <xsd:element name="TaxationLocation">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="CountryCode" type="CountryCodeType" minOccurs="0" />
                                <xsd:element name="Region" type="xsd:string" minOccurs="0" />
                                <xsd:element name="Municipality" type="xsd:string" minOccurs="0" />
                                <xsd:element name="PostalCode" type="xsd:string" minOccurs="0" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="TaxAmount">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id (1) (1)
ParticipantId hr:ParticipantId (1) (1)
ExerciseDate hr:ExerciseDate (1) (1)
ExerciseInfo hr:ExerciseInfo (1) (1)
FairMarketValueOnExerciseDate hr:FairMarketValueOnExerciseDate (1) (1)
ExerciseInstructions hr:ExerciseInstructions 0 (1)
TaxInfo hr:TaxInfo 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:ExerciseConfirmation
