Definition Type: ComplexType
Name: ExerciseRequestType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: ExerciseRequest.xsd
Abstract

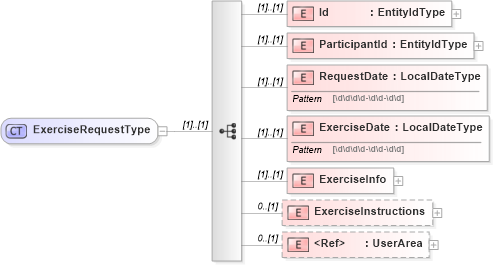

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into ExerciseInstructions in schema exerciserequest_xsd Drilldown into ExerciseInfo in schema exerciserequest_xsd Drilldown into ExerciseDate in schema exerciserequest_xsd Drilldown into RequestDate in schema exerciserequest_xsd Drilldown into ParticipantId in schema exerciserequest_xsd Drilldown into Id in schema exerciserequest_xsdXSD Diagram of ExerciseRequestType in schema exerciserequest_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ExerciseRequestType">
    <xsd:sequence>
        <xsd:element name="Id" type="EntityIdType" />
        <xsd:element name="ParticipantId" type="EntityIdType" />
        <xsd:element name="RequestDate" type="LocalDateType" />
        <xsd:element name="ExerciseDate" type="LocalDateType" />
        <xsd:element name="ExerciseInfo">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="GrantId" type="EntityIdType" />
                    <xsd:element name="OptionsToBeExercised" type="xsd:decimal" />
                    <xsd:element name="GrantPrice" minOccurs="0">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="SharesToBeSold" type="xsd:decimal" />
                    <xsd:element name="SARPercentCashRequested" type="xsd:decimal" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="ExerciseInstructions" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="SellToCoverOptions" type="xsd:boolean" />
                    <xsd:element name="SellToCoverTaxes" type="xsd:boolean" />
                    <xsd:element name="SellToCoverFees" type="xsd:boolean" />
                    <xsd:element name="UseSharesForTaxes" type="xsd:boolean" />
                    <xsd:element name="UseSharesFirst" type="xsd:boolean" />
                    <xsd:element name="SharesSwapped" type="xsd:decimal" />
                    <xsd:element name="TaxRelevantPrice" minOccurs="0">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="SaleType">
                        <xsd:complexType>
                            <xsd:choice>
                                <xsd:element name="MarketOrder" type="xsd:boolean" />
                                <xsd:element name="LimitOrder">
                                    <xsd:complexType>
                                        <xsd:sequence>
                                            <xsd:element name="LimitPrice" type="xsd:decimal" />
                                            <xsd:element name="ExpiryDate" type="LocalDateType" />
                                        </xsd:sequence>
                                    </xsd:complexType>
                                </xsd:element>
                                <xsd:element name="GoodTillCancelled" type="xsd:boolean" />
                            </xsd:choice>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id (1) (1)
ParticipantId hr:ParticipantId (1) (1)
RequestDate hr:RequestDate (1) (1)
ExerciseDate hr:ExerciseDate (1) (1)
ExerciseInfo hr:ExerciseInfo (1) (1)
ExerciseInstructions hr:ExerciseInstructions 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:ExerciseRequest
