Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: FRContractRequirementsType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: FRLocalizations.xsd
Abstract

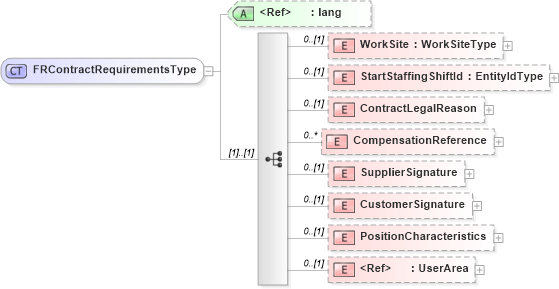

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into PositionCharacteristics in schema frlocalizations_xsd Drilldown into CustomerSignature in schema frlocalizations_xsd Drilldown into SupplierSignature in schema frlocalizations_xsd Drilldown into CompensationReference in schema frlocalizations_xsd Drilldown into ContractLegalReason in schema frlocalizations_xsd Drilldown into StartStaffingShiftId in schema frlocalizations_xsd Drilldown into WorkSite in schema frlocalizations_xsd Drilldown into lang in schema xml_xsdXSD Diagram of FRContractRequirementsType in schema frlocalizations_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="FRContractRequirementsType">
    <xsd:sequence>
        <xsd:element name="WorkSite" type="WorkSiteType" minOccurs="0" />
        <xsd:element name="StartStaffingShiftId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="ContractLegalReason" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="LocalContractType" type="xsd:string" />
                    <xsd:element name="RecourseType">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="Code" type="xsd:string" />
                                <xsd:element name="Description" type="xsd:string" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="ContractReason" type="xsd:string" />
                    <xsd:element name="ReplacedPerson" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="PersonName" type="PersonNameType" />
                                <xsd:element name="Position" type="xsd:string" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="CompensationReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Code" type="xsd:string" />
                    <xsd:element name="Description" type="xsd:string" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="SupplierSignature" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="WrittenBy" type="PersonNameType" />
                    <xsd:element name="SignedBy" type="PersonNameType" />
                    <xsd:element name="Date" type="LocalDateType" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="CustomerSignature" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="SignedBy" type="PersonNameType" />
                    <xsd:element name="Date" type="LocalDateType" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="PositionCharacteristics" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="PositionTitle" type="xsd:string" />
                    <xsd:element name="PositionStatus" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="Code" type="xsd:string" />
                                <xsd:element name="Description" type="xsd:string" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Description" type="xsd:string" minOccurs="0" />
                    <xsd:element name="PositionLevel" type="xsd:string" minOccurs="0" />
                    <xsd:element name="PositionCoefficient" type="xsd:string" minOccurs="0" />
                    <xsd:element name="PositionSpecificCondition" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="ConditionCode" type="xsd:string" minOccurs="0" />
                                <xsd:element name="ConditionDescription" type="xsd:string" minOccurs="0" />
                                <xsd:element name="ConditionValue" type="xsd:string" minOccurs="0" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
WorkSite hr:WorkSite 0 (1)
StartStaffingShiftId hr:StartStaffingShiftId 0 (1)
ContractLegalReason hr:ContractLegalReason 0 (1)
CompensationReference hr:CompensationReference 0 unbounded
SupplierSignature hr:SupplierSignature 0 (1)
CustomerSignature hr:CustomerSignature 0 (1)
PositionCharacteristics hr:PositionCharacteristics 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
Collapse References:
hr:FRContractRequirements, hr:LocalContractRequirementsType
