Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Grant
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:GrantDataType
Containing Schema: Grant.xsd
Abstract

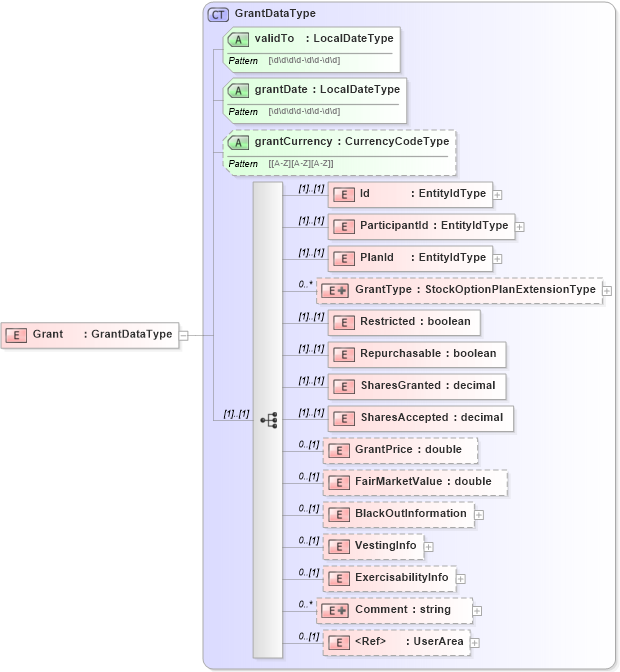

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into Comment in schema grant_xsd Drilldown into ExercisabilityInfo in schema grant_xsd Drilldown into VestingInfo in schema grant_xsd Drilldown into BlackOutInformation in schema grant_xsd Drilldown into FairMarketValue in schema grant_xsd Drilldown into GrantPrice in schema grant_xsd Drilldown into SharesAccepted in schema grant_xsd Drilldown into SharesGranted in schema grant_xsd Drilldown into Repurchasable in schema grant_xsd Drilldown into Restricted in schema grant_xsd Drilldown into GrantType in schema grant_xsd Drilldown into PlanId in schema grant_xsd Drilldown into ParticipantId in schema grant_xsd Drilldown into Id in schema grant_xsd Drilldown into grantCurrency in schema grant_xsd Drilldown into grantDate in schema grant_xsd Drilldown into validTo in schema grant_xsd Drilldown into GrantDataType in schema grant_xsdXSD Diagram of Grant in schema grant_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Grant" type="GrantDataType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id (1) (1)
ParticipantId hr:ParticipantId (1) (1)
PlanId hr:PlanId (1) (1)
GrantType hr:GrantType 0 unbounded
Restricted hr:Restricted (1) (1)
Repurchasable hr:Repurchasable (1) (1)
SharesGranted hr:SharesGranted (1) (1)
SharesAccepted hr:SharesAccepted (1) (1)
GrantPrice hr:GrantPrice 0 (1)
FairMarketValue hr:FairMarketValue 0 (1)
BlackOutInformation hr:BlackOutInformation 0 (1)
VestingInfo hr:VestingInfo 0 (1)
ExercisabilityInfo hr:ExercisabilityInfo 0 (1)
Comment hr:Comment 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validTo hr:validTo Required
grantDate hr:grantDate Required
grantCurrency hr:grantCurrency (Optional)
Collapse Derivation Tree:
