Definition Type: Element
Name: HiringProcessActivity
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:ActivityType
Containing Schema: NewHire.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

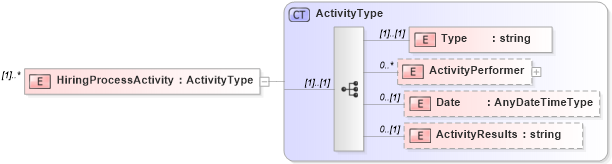

Collapse XSD Schema Diagram:
Drilldown into ActivityResults in schema newhire_xsd Drilldown into Date in schema newhire_xsd Drilldown into ActivityPerformer in schema newhire_xsd Drilldown into Type in schema newhire_xsd Drilldown into ActivityType in schema newhire_xsdXSD Diagram of HiringProcessActivity in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="HiringProcessActivity" type="ActivityType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Type hr:Type (1) (1)
ActivityPerformer hr:ActivityPerformer 0 unbounded
Date hr:Date 0 (1)
ActivityResults hr:ActivityResults 0 (1)
Collapse Derivation Tree:
