Definition Type: ComplexType
Name: IndEmployeeWorkSiteRefType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: OrganizationalInfoTypes.xsd
Abstract

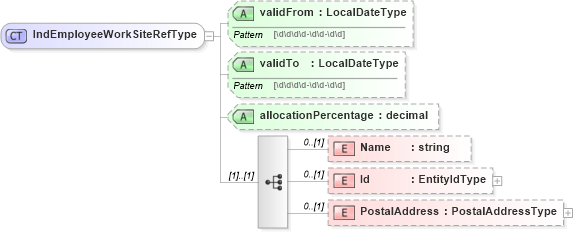

Collapse XSD Schema Diagram:
Drilldown into PostalAddress in schema organizationalinfotypes_xsd Drilldown into Id in schema organizationalinfotypes_xsd Drilldown into Name in schema organizationalinfotypes_xsd Drilldown into allocationPercentage in schema organizationalinfotypes_xsd Drilldown into validTo in schema organizationalinfotypes_xsd Drilldown into validFrom in schema organizationalinfotypes_xsdXSD Diagram of IndEmployeeWorkSiteRefType in schema organizationalinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndEmployeeWorkSiteRefType">
    <xsd:sequence>
        <xsd:element name="Name" type="xsd:string" minOccurs="0" />
        <xsd:element name="Id" type="EntityIdType" minOccurs="0" />
        <xsd:element name="PostalAddress" type="PostalAddressType" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="validFrom" type="LocalDateType" use="optional" />
    <xsd:attribute name="validTo" type="LocalDateType" use="optional" />
    <xsd:attribute name="allocationPercentage" type="xsd:decimal" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name hr:Name 0 (1)
Id hr:Id 0 (1)
PostalAddress hr:PostalAddress 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom Optional
validTo hr:validTo Optional
allocationPercentage hr:allocationPercentage (Optional)
Collapse Derivation Tree:
Collapse References:
hr:WorkLocation
