Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: IndicativeBatch
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: IndicativeBatch.xsd
Abstract

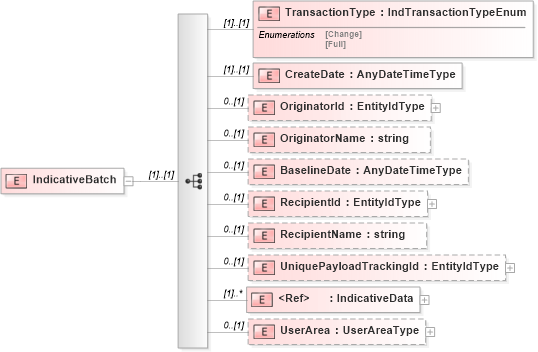

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema indicativebatch_xsd Drilldown into IndicativeData in schema indicativedata_xsd Drilldown into UniquePayloadTrackingId in schema indicativebatch_xsd Drilldown into RecipientName in schema indicativebatch_xsd Drilldown into RecipientId in schema indicativebatch_xsd Drilldown into BaselineDate in schema indicativebatch_xsd Drilldown into OriginatorName in schema indicativebatch_xsd Drilldown into OriginatorId in schema indicativebatch_xsd Drilldown into CreateDate in schema indicativebatch_xsd Drilldown into TransactionType in schema indicativebatch_xsdXSD Diagram of IndicativeBatch in schema indicativebatch_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="IndicativeBatch">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="TransactionType" type="IndTransactionTypeEnum" />
            <xsd:element name="CreateDate" type="AnyDateTimeType" />
            <xsd:element name="OriginatorId" type="EntityIdType" minOccurs="0" />
            <xsd:element name="OriginatorName" type="xsd:string" minOccurs="0" />
            <xsd:element name="BaselineDate" type="AnyDateTimeType" minOccurs="0" />
            <xsd:element name="RecipientId" type="EntityIdType" minOccurs="0" />
            <xsd:element name="RecipientName" type="xsd:string" minOccurs="0" />
            <xsd:element name="UniquePayloadTrackingId" type="EntityIdType" minOccurs="0" />
            <xsd:element ref="IndicativeData" maxOccurs="unbounded" />
            <xsd:element name="UserArea" type="UserAreaType" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransactionType hr:TransactionType (1) (1)
CreateDate hr:CreateDate (1) (1)
OriginatorId hr:OriginatorId 0 (1)
OriginatorName hr:OriginatorName 0 (1)
BaselineDate hr:BaselineDate 0 (1)
RecipientId hr:RecipientId 0 (1)
RecipientName hr:RecipientName 0 (1)
UniquePayloadTrackingId hr:UniquePayloadTrackingId 0 (1)
IndicativeData hr:IndicativeData (1) unbounded
UserArea hr:UserArea 0 (1)
