Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: IndMaritalStatusType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndMaritalStatusEnumExtensionType
Containing Schema: PersonalInfoTypes.xsd
Abstract

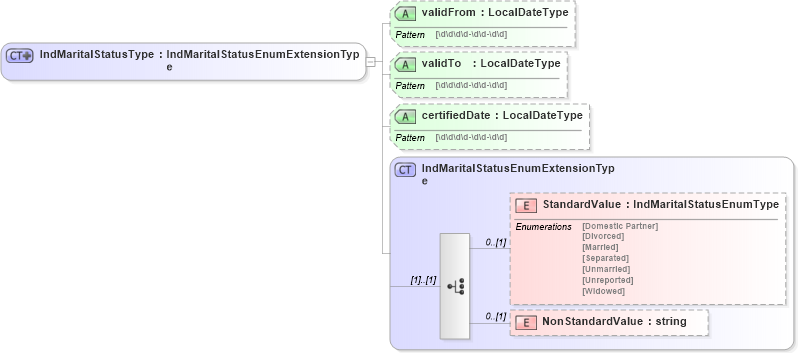

Collapse XSD Schema Diagram:
Drilldown into NonStandardValue in schema personalinfotypes_xsd Drilldown into StandardValue in schema personalinfotypes_xsd Drilldown into IndMaritalStatusEnumExtensionType in schema personalinfotypes_xsd Drilldown into certifiedDate in schema personalinfotypes_xsd Drilldown into validTo in schema personalinfotypes_xsd Drilldown into validFrom in schema personalinfotypes_xsdXSD Diagram of IndMaritalStatusType in schema personalinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndMaritalStatusType">
    <xsd:complexContent>
        <xsd:extension base="IndMaritalStatusEnumExtensionType">
            <xsd:attribute name="validFrom" type="LocalDateType" use="optional" />
            <xsd:attribute name="validTo" type="LocalDateType" use="optional" />
            <xsd:attribute name="certifiedDate" type="LocalDateType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StandardValue hr:StandardValue 0 (1)
NonStandardValue hr:NonStandardValue 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom Optional
validTo hr:validTo Optional
certifiedDate hr:certifiedDate Optional
Collapse Derivation Tree:
Collapse References:
hr:MaritalStatus
