Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: JobPositionDetail
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndJobPositionDetailType
Containing Schema: JobInfoTypes.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

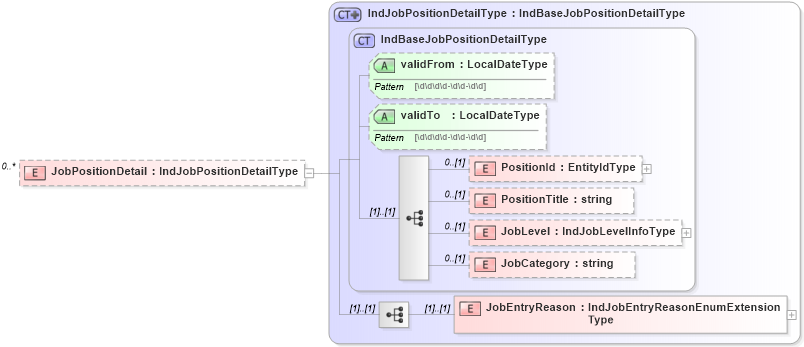

Collapse XSD Schema Diagram:
Drilldown into JobEntryReason in schema jobinfotypes_xsd Drilldown into JobCategory in schema jobinfotypes_xsd Drilldown into JobLevel in schema jobinfotypes_xsd Drilldown into PositionTitle in schema jobinfotypes_xsd Drilldown into PositionId in schema jobinfotypes_xsd Drilldown into validTo in schema jobinfotypes_xsd Drilldown into validFrom in schema jobinfotypes_xsd Drilldown into IndBaseJobPositionDetailType in schema jobinfotypes_xsd Drilldown into IndJobPositionDetailType in schema jobinfotypes_xsdXSD Diagram of JobPositionDetail in schema jobinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="JobPositionDetail" type="IndJobPositionDetailType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionId hr:PositionId 0 (1)
PositionTitle hr:PositionTitle 0 (1)
JobLevel hr:JobLevel 0 (1)
JobCategory hr:JobCategory 0 (1)
JobEntryReason hr:JobEntryReason (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom Optional
validTo hr:validTo Optional
Collapse Derivation Tree:
