Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: LearningObjectReferenceType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EPMTypes.xsd
Abstract
Collapse XSD Schema Diagram:

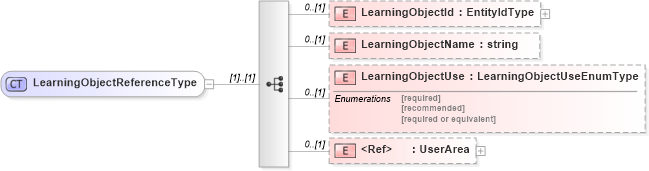

Drilldown into UserArea in schema userarea_xsd Drilldown into LearningObjectUse in schema epmtypes_xsd Drilldown into LearningObjectName in schema epmtypes_xsd Drilldown into LearningObjectId in schema epmtypes_xsdXSD Diagram of LearningObjectReferenceType in schema epmtypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="LearningObjectReferenceType">
    <xsd:sequence>
        <xsd:element name="LearningObjectId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="LearningObjectName" type="xsd:string" minOccurs="0" />
        <xsd:element name="LearningObjectUse" type="LearningObjectUseEnumType" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LearningObjectId hr:LearningObjectId 0 (1)
LearningObjectName hr:LearningObjectName 0 (1)
LearningObjectUse hr:LearningObjectUse 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:LearningObjectReference
