Definition Type: ComplexType
Name: MedicareData
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: USLocalizations.xsd
Abstract

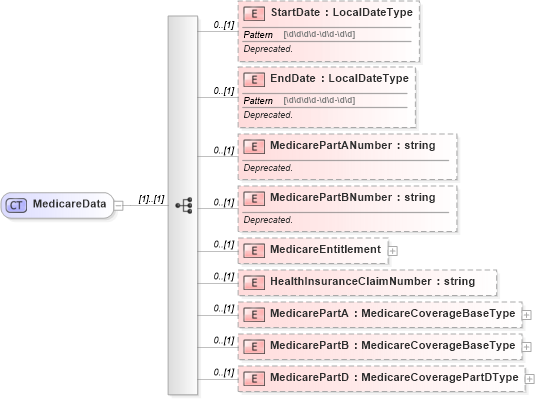

Collapse XSD Schema Diagram:
Drilldown into MedicarePartD in schema uslocalizations_xsd1 Drilldown into MedicarePartB in schema uslocalizations_xsd1 Drilldown into MedicarePartA in schema uslocalizations_xsd1 Drilldown into HealthInsuranceClaimNumber in schema uslocalizations_xsd1 Drilldown into MedicareEntitlement in schema uslocalizations_xsd1 Drilldown into MedicarePartBNumber in schema uslocalizations_xsd1 Drilldown into MedicarePartANumber in schema uslocalizations_xsd1 Drilldown into EndDate in schema uslocalizations_xsd1 Drilldown into StartDate in schema uslocalizations_xsd1XSD Diagram of MedicareData in schema uslocalizations_xsd1 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="MedicareData">
    <xsd:sequence>
        <xsd:element name="StartDate" type="LocalDateType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Deprecated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="EndDate" type="LocalDateType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Deprecated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MedicarePartANumber" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Deprecated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MedicarePartBNumber" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Deprecated.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="MedicareEntitlement" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="IsEligible" type="MedicareIsEligibleTypesType" minOccurs="0" />
                    <xsd:element name="EntitlementReason" type="EntitlementReasonCodeTypesType" minOccurs="0" />
                    <xsd:element name="StartDate" type="LocalDateType" minOccurs="0" />
                    <xsd:element name="EndDate" type="LocalDateType" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="HealthInsuranceClaimNumber" type="xsd:string" minOccurs="0" />
        <xsd:element name="MedicarePartA" type="MedicareCoverageBaseType" minOccurs="0" />
        <xsd:element name="MedicarePartB" type="MedicareCoverageBaseType" minOccurs="0" />
        <xsd:element name="MedicarePartD" type="MedicareCoveragePartDType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StartDate hr:StartDate 0 (1)
EndDate hr:EndDate 0 (1)
MedicarePartANumber hr:MedicarePartANumber 0 (1)
MedicarePartBNumber hr:MedicarePartBNumber 0 (1)
MedicareEntitlement hr:MedicareEntitlement 0 (1)
HealthInsuranceClaimNumber hr:HealthInsuranceClaimNumber 0 (1)
MedicarePartA hr:MedicarePartA 0 (1)
MedicarePartB hr:MedicarePartB 0 (1)
MedicarePartD hr:MedicarePartD 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:Medicare
