Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: OrderStatus
Namespace: http://www.openapplications.org/oagis
Type: nsC:OrderStatus
Containing Schema: Invoice.xsd
Abstract
Documentation:
Order specific status information.

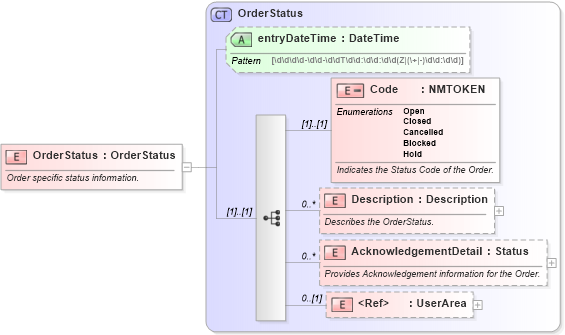

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema invoice_xsd Drilldown into AcknowledgementDetail in schema invoice_xsd Drilldown into Description in schema invoice_xsd Drilldown into Code in schema invoice_xsd Drilldown into entryDateTime in schema invoice_xsd Drilldown into OrderStatus in schema invoice_xsdXSD Diagram of OrderStatus in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:element name="OrderStatus" type="OrderStatus">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Order specific status information.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsC:Code (1) (1)
Description nsC:Description 0 unbounded
AcknowledgementDetail nsC:AcknowledgementDetail 0 unbounded
UserArea nsC:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
entryDateTime nsC:entryDateTime (Optional)
Collapse Derivation Tree:
