Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: OrganizationalUnit
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:OrganizationalUnitType
Containing Schema: NewHire.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

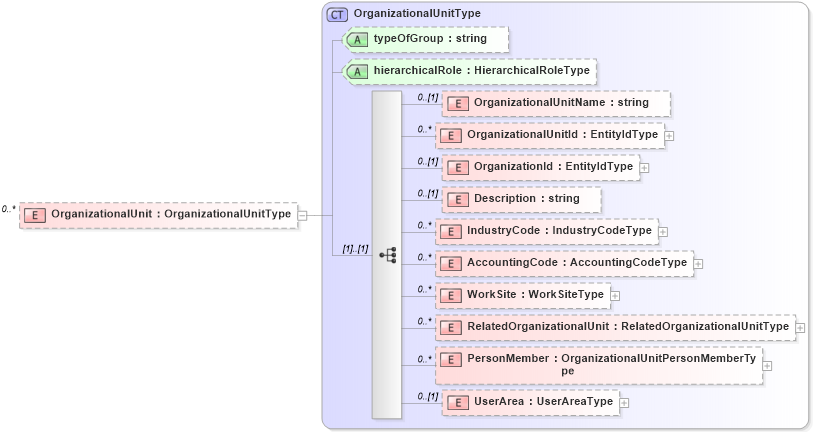

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema organization_xsd Drilldown into PersonMember in schema organization_xsd Drilldown into RelatedOrganizationalUnit in schema organization_xsd Drilldown into WorkSite in schema organization_xsd Drilldown into AccountingCode in schema organization_xsd Drilldown into IndustryCode in schema organization_xsd Drilldown into Description in schema organization_xsd Drilldown into OrganizationId in schema organization_xsd Drilldown into OrganizationalUnitId in schema organization_xsd Drilldown into OrganizationalUnitName in schema organization_xsd Drilldown into hierarchicalRole in schema organization_xsd Drilldown into typeOfGroup in schema organization_xsd Drilldown into OrganizationalUnitType in schema organization_xsdXSD Diagram of OrganizationalUnit in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="OrganizationalUnit" type="OrganizationalUnitType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationalUnitName hr:OrganizationalUnitName 0 (1)
OrganizationalUnitId hr:OrganizationalUnitId 0 unbounded
OrganizationId hr:OrganizationId 0 (1)
Description hr:Description 0 (1)
IndustryCode hr:IndustryCode 0 unbounded
AccountingCode hr:AccountingCode 0 unbounded
WorkSite hr:WorkSite 0 unbounded
RelatedOrganizationalUnit hr:RelatedOrganizationalUnit 0 unbounded
PersonMember hr:PersonMember 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
typeOfGroup hr:typeOfGroup (Optional)
hierarchicalRole hr:hierarchicalRole Optional
Collapse Derivation Tree:
