Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PartyAssignedPartyId
Namespace: http://www.openapplications.org/oagis
Type: nsC:PartyIdType
Containing Schema: Invoice.xsd
Abstract
Documentation:
PartyQualifiedPartyId - the type of any [Party]PartyId, such as BillToPartyId.
Collapse XSD Schema Diagram:

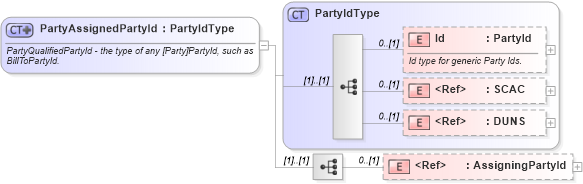

Drilldown into AssigningPartyId in schema invoice_xsd Drilldown into DUNS in schema invoice_xsd Drilldown into SCAC in schema invoice_xsd Drilldown into Id in schema invoice_xsd Drilldown into PartyIdType in schema invoice_xsdXSD Diagram of PartyAssignedPartyId in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="PartyAssignedPartyId">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">PartyQualifiedPartyId - the type of any [Party]PartyId, such as BillToPartyId.</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="PartyIdType">
            <xs:sequence>
                <xs:element ref="AssigningPartyId" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id nsC:Id 0 (1)
SCAC nsC:SCAC 0 (1)
DUNS nsC:DUNS 0 (1)
AssigningPartyId nsC:AssigningPartyId 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:BillToPartyId, nsC:CustomerPartyId, nsC:PartyAssignedPartyId, nsC:PartyId, nsC:ShipToPartyId, nsC:SupplierPartyId
