Definition Type: Element
Name: Patent
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:PatentDescriptionType
Containing Schema: PatentHistory.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

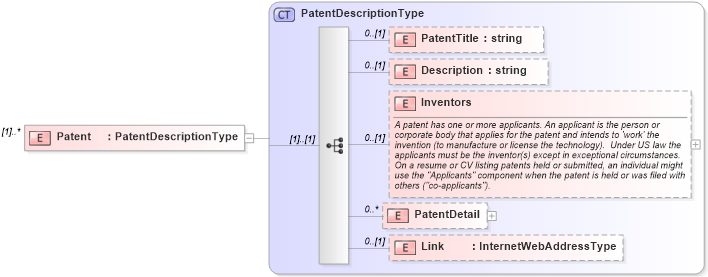

Collapse XSD Schema Diagram:
Drilldown into Link in schema patenthistory_xsd Drilldown into PatentDetail in schema patenthistory_xsd Drilldown into Inventors in schema patenthistory_xsd Drilldown into Description in schema patenthistory_xsd Drilldown into PatentTitle in schema patenthistory_xsd Drilldown into PatentDescriptionType in schema patenthistory_xsdXSD Diagram of Patent in schema patenthistory_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Patent" type="PatentDescriptionType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PatentTitle hr:PatentTitle 0 (1)
Description hr:Description 0 (1)
Inventors hr:Inventors 0 (1)
PatentDetail hr:PatentDetail 0 unbounded
Link hr:Link 0 (1)
Collapse Derivation Tree:
