Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PaymentInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: StaffingOrganization.xsd
Abstract

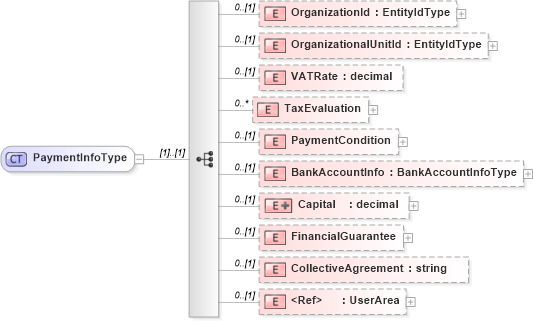

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into CollectiveAgreement in schema staffingorganization_xsd Drilldown into FinancialGuarantee in schema staffingorganization_xsd Drilldown into Capital in schema staffingorganization_xsd Drilldown into BankAccountInfo in schema staffingorganization_xsd Drilldown into PaymentCondition in schema staffingorganization_xsd Drilldown into TaxEvaluation in schema staffingorganization_xsd Drilldown into VATRate in schema staffingorganization_xsd Drilldown into OrganizationalUnitId in schema staffingorganization_xsd Drilldown into OrganizationId in schema staffingorganization_xsdXSD Diagram of PaymentInfoType in schema staffingorganization_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentInfoType">
    <xsd:sequence>
        <xsd:element name="OrganizationId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="OrganizationalUnitId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="VATRate" type="xsd:decimal" minOccurs="0" />
        <xsd:element name="TaxEvaluation" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="TaxType" type="xsd:string" />
                    <xsd:element name="Description" type="xsd:string" minOccurs="0" />
                    <xsd:element name="TaxRounding" type="RoundingRuleType" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="PaymentCondition" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Structured" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="PaymentMode" type="xsd:string" />
                                <xsd:element name="PaymentTimeAllowed" type="xsd:decimal" />
                                <xsd:element name="PaymentEvent" type="xsd:string" />
                                <xsd:element name="PaymentDay" type="xsd:decimal" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Description" type="xsd:string" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="BankAccountInfo" type="BankAccountInfoType" minOccurs="0" />
        <xsd:element name="Capital" minOccurs="0">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:decimal">
                        <xsd:attribute name="currencyCode" type="CurrencyCodeType" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="FinancialGuarantee" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Name" type="xsd:string" minOccurs="0" />
                    <xsd:element name="Amount" minOccurs="0">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:string">
                                    <xsd:attribute name="currencyCode" type="CurrencyCodeType" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="CollectiveAgreement" type="xsd:string" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationId hr:OrganizationId 0 (1)
OrganizationalUnitId hr:OrganizationalUnitId 0 (1)
VATRate hr:VATRate 0 (1)
TaxEvaluation hr:TaxEvaluation 0 unbounded
PaymentCondition hr:PaymentCondition 0 (1)
BankAccountInfo hr:BankAccountInfo 0 (1)
Capital hr:Capital 0 (1)
FinancialGuarantee hr:FinancialGuarantee 0 (1)
CollectiveAgreement hr:CollectiveAgreement 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:PaymentInfo
