Definition Type: ComplexType
Name: PaymentPatternType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Credit.xsd
Abstract
Collapse XSD Schema Diagram:

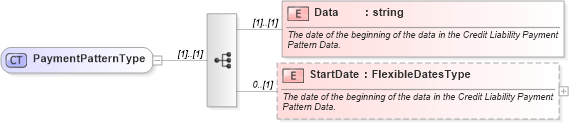

Drilldown into StartDate in schema credit_xsd Drilldown into Data in schema credit_xsdXSD Diagram of PaymentPatternType in schema credit_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentPatternType">
    <xsd:sequence>
        <xsd:element name="Data" type="xsd:string">
            <xsd:annotation>
                <xsd:documentation>The date of the beginning of the data in the Credit Liability Payment Pattern Data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="StartDate" type="FlexibleDatesType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The date of the beginning of the data in the Credit Liability Payment Pattern Data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Data hr:Data (1) (1)
StartDate hr:StartDate 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:PaymentPattern
