Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: PersonDescriptorsType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: PersonDescriptors.xsd
Abstract

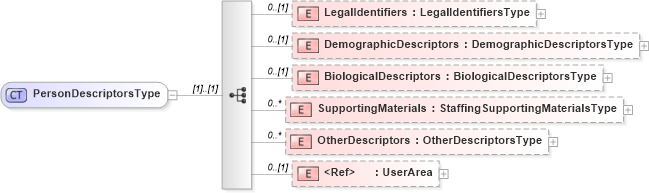

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into OtherDescriptors in schema persondescriptors_xsd Drilldown into SupportingMaterials in schema persondescriptors_xsd Drilldown into BiologicalDescriptors in schema persondescriptors_xsd Drilldown into DemographicDescriptors in schema persondescriptors_xsd Drilldown into LegalIdentifiers in schema persondescriptors_xsdXSD Diagram of PersonDescriptorsType in schema persondescriptors_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PersonDescriptorsType">
    <xsd:sequence>
        <xsd:element name="LegalIdentifiers" type="LegalIdentifiersType" minOccurs="0" />
        <xsd:element name="DemographicDescriptors" type="DemographicDescriptorsType" minOccurs="0" />
        <xsd:element name="BiologicalDescriptors" type="BiologicalDescriptorsType" minOccurs="0" />
        <xsd:element name="SupportingMaterials" type="StaffingSupportingMaterialsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="OtherDescriptors" type="OtherDescriptorsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LegalIdentifiers hr:LegalIdentifiers 0 (1)
DemographicDescriptors hr:DemographicDescriptors 0 (1)
BiologicalDescriptors hr:BiologicalDescriptors 0 (1)
SupportingMaterials hr:SupportingMaterials 0 unbounded
OtherDescriptors hr:OtherDescriptors 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:PersonDescriptors, hr:PersonDescriptors, hr:PersonDescriptors
