Definition Type: ComplexType
Name: PositionProfileType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: PositionOpening.xsd
Abstract

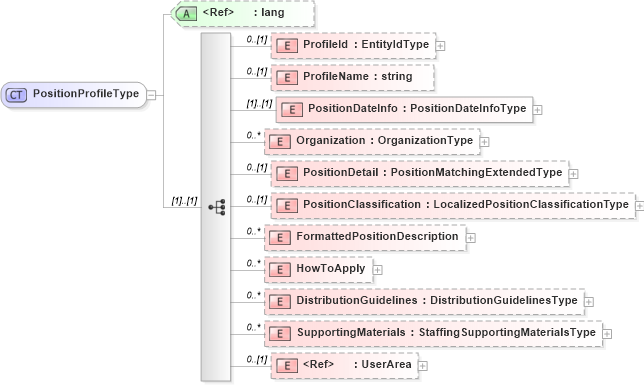

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into SupportingMaterials in schema positionopening_xsd Drilldown into DistributionGuidelines in schema positionopening_xsd Drilldown into HowToApply in schema positionopening_xsd Drilldown into FormattedPositionDescription in schema positionopening_xsd Drilldown into PositionClassification in schema positionopening_xsd Drilldown into PositionDetail in schema positionopening_xsd Drilldown into Organization in schema positionopening_xsd Drilldown into PositionDateInfo in schema positionopening_xsd Drilldown into ProfileName in schema positionopening_xsd Drilldown into ProfileId in schema positionopening_xsd Drilldown into lang in schema xml_xsdXSD Diagram of PositionProfileType in schema positionopening_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="PositionProfileType">
    <xsd:sequence>
        <xsd:element name="ProfileId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="ProfileName" type="xsd:string" minOccurs="0" />
        <xsd:element name="PositionDateInfo" type="PositionDateInfoType" />
        <xsd:element name="Organization" type="OrganizationType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="PositionDetail" type="PositionMatchingExtendedType" minOccurs="0" />
        <xsd:element name="PositionClassification" type="LocalizedPositionClassificationType" minOccurs="0" />
        <xsd:element name="FormattedPositionDescription" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Name">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:string">
                                    <xsd:attribute ref="xml:lang" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Value">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:string">
                                    <xsd:attribute ref="xml:lang" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="HowToApply" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element ref="PersonName" minOccurs="0" />
                    <xsd:element name="ApplicationMethod" type="ApplicationMethodType" minOccurs="0" />
                    <xsd:element ref="UserArea" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="DistributionGuidelines" type="DistributionGuidelinesType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="SupportingMaterials" type="StaffingSupportingMaterialsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfileId hr:ProfileId 0 (1)
ProfileName hr:ProfileName 0 (1)
PositionDateInfo hr:PositionDateInfo (1) (1)
Organization hr:Organization 0 unbounded
PositionDetail hr:PositionDetail 0 (1)
PositionClassification hr:PositionClassification 0 (1)
FormattedPositionDescription hr:FormattedPositionDescription 0 unbounded
HowToApply hr:HowToApply 0 unbounded
DistributionGuidelines hr:DistributionGuidelines 0 unbounded
SupportingMaterials hr:SupportingMaterials 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
Collapse References:
hr:PositionProfile
