<xsd:complexType name="ProfessionalLicenseReportTypeType">
<xsd:sequence>
<xsd:element name="ApplicantInformation" type="ScreeningPersonalDataType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Personal information relating to the screening subject as contained in the agency or institutions records.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ContactInformation" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Contact information relating to the individual within the agency that provided the screening results.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="PersonName" type="PersonNameType" minOccurs="0" />
<xsd:element name="Title" type="xsd:string" minOccurs="0" />
<xsd:element name="ContactMethod" type="ContactMethodType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="ProfessionalLicense" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="EffectiveDate" type="EffectiveDateType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>StartDate will contain the date when a license was issued/renewed. The EndDate will contain license expiration date.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="CountryCode" minOccurs="0" />
<xsd:element name="Region" type="xsd:string" minOccurs="0" />
<xsd:element name="LicenseNumber" type="xsd:string">
<xsd:annotation>
<xsd:documentation>Unique agency issued identifier associated with the license.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LicensingAgency" type="xsd:string" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The jurisdiction code of the region that issued the license and/or the type of license. i.e. Pharmicist, LPN, Airline Transport Pilot.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LicenseName" type="LicenseNameType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The name of the license. This could be the same as the license type.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LicenseDescription" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Description or ratings applicable to the license.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LicenseStatus" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The current status of an individual's license
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DisciplinaryActions" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Disiplinary actions taken or pending. If the action is pending, set the pending attribute = true.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:string">
<xsd:attribute name="pending" type="xsd:boolean" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="OtherQualifications" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Medical or other qualifications associated with or required to maintain active status of license.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Qualification" type="xsd:string">
<xsd:annotation>
<xsd:documentation>Description of the qualification.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EffectiveDate" type="EffectiveDateType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The effective date of the qualification.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" />
</xsd:complexType>
</xsd:element>
<xsd:element name="LicenseRestrictions" type="xsd:string" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Restrictions associated with the license.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuestionAnswerPair" type="QuestionAnswerPairType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Contains Results of a specific question. The name attribute of IdValue contains the identifier in the screening companies system of the specific question.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Comments" type="xsd:string" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Comments related to this screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
|

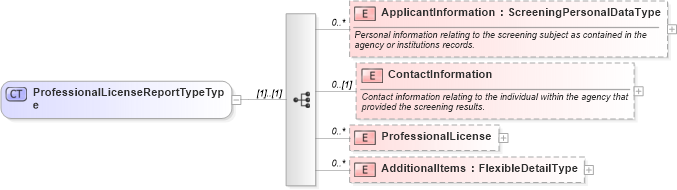

XSD Schema Diagram:
