Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: RateOrAmount
Namespace: http://ns.hr-xml.org/2007-04-15
Type: double:http://www.w3.org/2001/XMLSchema
Containing Schema: TimeCard.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

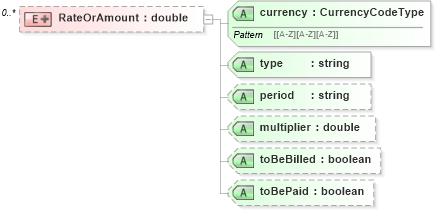

Collapse XSD Schema Diagram:
Drilldown into toBePaid in schema timecard_xsd Drilldown into toBeBilled in schema timecard_xsd Drilldown into multiplier in schema timecard_xsd Drilldown into period in schema timecard_xsd Drilldown into type in schema timecard_xsd Drilldown into currency in schema timecard_xsdXSD Diagram of RateOrAmount in schema timecard_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="RateOrAmount" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:simpleContent>
            <xsd:extension base="xsd:double">
                <xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
                <xsd:attribute name="type" type="xsd:string" use="required" />
                <xsd:attribute name="period" type="xsd:string" />
                <xsd:attribute name="multiplier" type="xsd:double" />
                <xsd:attribute name="toBeBilled" type="xsd:boolean" />
                <xsd:attribute name="toBePaid" type="xsd:boolean" />
            </xsd:extension>
        </xsd:simpleContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
currency hr:currency Required
type hr:type Required
period hr:period (Optional)
multiplier hr:multiplier (Optional)
toBeBilled hr:toBeBilled (Optional)
toBePaid hr:toBePaid (Optional)
