Definition Type: ComplexType
Name: ReportingDataType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: MetricsInterchange.xsd
Abstract

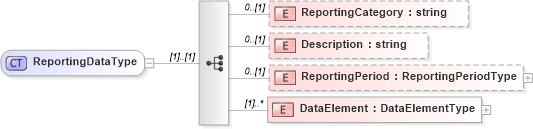

Collapse XSD Schema Diagram:
Drilldown into DataElement in schema metricsinterchange_xsd Drilldown into ReportingPeriod in schema metricsinterchange_xsd Drilldown into Description in schema metricsinterchange_xsd Drilldown into ReportingCategory in schema metricsinterchange_xsdXSD Diagram of ReportingDataType in schema metricsinterchange_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ReportingDataType">
    <xsd:sequence>
        <xsd:element name="ReportingCategory" type="xsd:string" minOccurs="0" />
        <xsd:element name="Description" type="xsd:string" minOccurs="0" />
        <xsd:element name="ReportingPeriod" type="ReportingPeriodType" minOccurs="0" />
        <xsd:element name="DataElement" type="DataElementType" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReportingCategory hr:ReportingCategory 0 (1)
Description hr:Description 0 (1)
ReportingPeriod hr:ReportingPeriod 0 (1)
DataElement hr:DataElement (1) unbounded
Collapse Derivation Tree:
Collapse References:
hr:ReportingData
