Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ResourceInformation
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: HumanResource.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

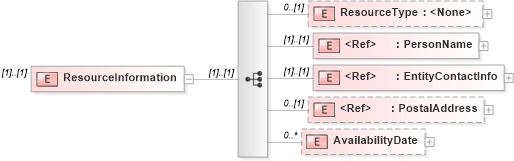

Collapse XSD Schema Diagram:
Drilldown into AvailabilityDate in schema humanresource_xsd Drilldown into PostalAddress in schema postaladdress_xsd Drilldown into EntityContactInfo in schema contactinfo_xsd Drilldown into PersonName in schema personname_xsd Drilldown into ResourceType in schema humanresource_xsdXSD Diagram of ResourceInformation in schema humanresource_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ResourceInformation">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ResourceType" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="independentContractor" type="xsd:boolean" use="required" />
                    <xsd:attribute name="payrolledEmployee" type="xsd:boolean" use="required" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element ref="PersonName" />
            <xsd:element ref="EntityContactInfo" />
            <xsd:element ref="PostalAddress" minOccurs="0" />
            <xsd:element name="AvailabilityDate" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="AvailabilityStartDate" type="AnyDateTimeNkType" />
                        <xsd:element name="AvailabilityEndDate" type="AnyDateTimeNkType" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceType hr:ResourceType 0 (1)
PersonName hr:PersonName (1) (1)
EntityContactInfo hr:EntityContactInfo (1) (1)
PostalAddress hr:PostalAddress 0 (1)
AvailabilityDate hr:AvailabilityDate 0 unbounded
