Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Resume
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Resume.xsd
Abstract

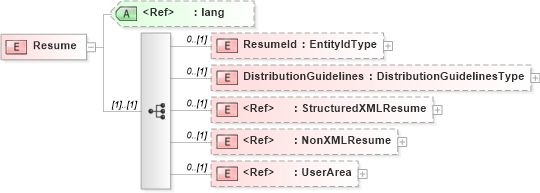

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into NonXMLResume in schema resume_xsd Drilldown into StructuredXMLResume in schema resume_xsd Drilldown into DistributionGuidelines in schema resume_xsd Drilldown into ResumeId in schema resume_xsd Drilldown into lang in schema xml_xsdXSD Diagram of Resume in schema resume_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Resume">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ResumeId" type="EntityIdType" minOccurs="0" />
            <xsd:element name="DistributionGuidelines" type="DistributionGuidelinesType" minOccurs="0" />
            <xsd:element ref="StructuredXMLResume" minOccurs="0" />
            <xsd:element ref="NonXMLResume" minOccurs="0" />
            <xsd:element ref="UserArea" minOccurs="0" />
        </xsd:sequence>
        <xsd:attribute ref="xml:lang" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResumeId hr:ResumeId 0 (1)
DistributionGuidelines hr:DistributionGuidelines 0 (1)
StructuredXMLResume hr:StructuredXMLResume 0 (1)
NonXMLResume hr:NonXMLResume 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
