Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SanctionDetailType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: BackgroundReports.xsd
Abstract

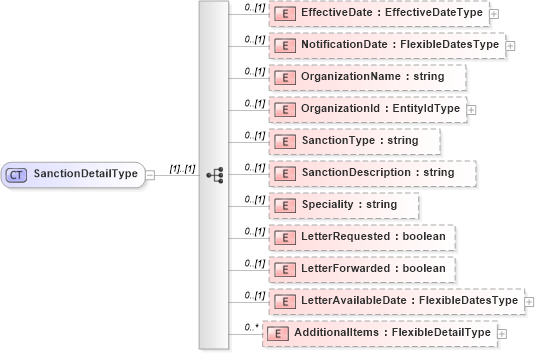

Collapse XSD Schema Diagram:
Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into LetterAvailableDate in schema backgroundreports_xsd Drilldown into LetterForwarded in schema backgroundreports_xsd Drilldown into LetterRequested in schema backgroundreports_xsd Drilldown into Speciality in schema backgroundreports_xsd Drilldown into SanctionDescription in schema backgroundreports_xsd Drilldown into SanctionType in schema backgroundreports_xsd Drilldown into OrganizationId in schema backgroundreports_xsd Drilldown into OrganizationName in schema backgroundreports_xsd Drilldown into NotificationDate in schema backgroundreports_xsd Drilldown into EffectiveDate in schema backgroundreports_xsdXSD Diagram of SanctionDetailType in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SanctionDetailType">
    <xsd:sequence>
        <xsd:element name="EffectiveDate" type="EffectiveDateType" minOccurs="0" />
        <xsd:element name="NotificationDate" type="FlexibleDatesType" minOccurs="0" />
        <xsd:element name="OrganizationName" type="xsd:string" minOccurs="0" />
        <xsd:element name="OrganizationId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="SanctionType" type="xsd:string" minOccurs="0" />
        <xsd:element name="SanctionDescription" type="xsd:string" minOccurs="0" />
        <xsd:element name="Speciality" type="xsd:string" minOccurs="0" />
        <xsd:element name="LetterRequested" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="LetterForwarded" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="LetterAvailableDate" type="FlexibleDatesType" minOccurs="0" />
        <xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveDate hr:EffectiveDate 0 (1)
NotificationDate hr:NotificationDate 0 (1)
OrganizationName hr:OrganizationName 0 (1)
OrganizationId hr:OrganizationId 0 (1)
SanctionType hr:SanctionType 0 (1)
SanctionDescription hr:SanctionDescription 0 (1)
Speciality hr:Speciality 0 (1)
LetterRequested hr:LetterRequested 0 (1)
LetterForwarded hr:LetterForwarded 0 (1)
LetterAvailableDate hr:LetterAvailableDate 0 (1)
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Derivation Tree:
Collapse References:
hr:SanctionDetail
