Definition Type: Element
Name: SanctionScreeningResult
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: BackgroundReports.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

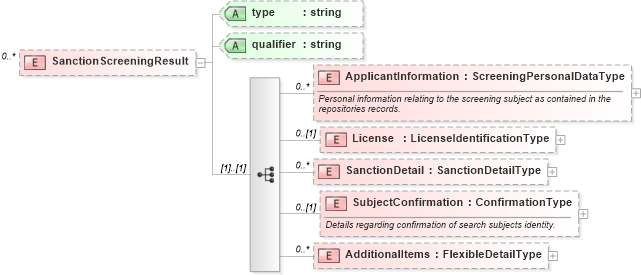

Collapse XSD Schema Diagram:
Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into SubjectConfirmation in schema backgroundreports_xsd Drilldown into SanctionDetail in schema backgroundreports_xsd Drilldown into License in schema backgroundreports_xsd Drilldown into ApplicantInformation in schema backgroundreports_xsd Drilldown into qualifier in schema backgroundreports_xsd Drilldown into type in schema backgroundreports_xsdXSD Diagram of SanctionScreeningResult in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SanctionScreeningResult" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ApplicantInformation" type="ScreeningPersonalDataType" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Personal information relating to the screening subject as contained in the repositories records.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="License" type="LicenseIdentificationType" minOccurs="0" />
            <xsd:element name="SanctionDetail" type="SanctionDetailType" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element name="SubjectConfirmation" type="ConfirmationType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Details regarding confirmation of search subjects identity.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="type" type="xsd:string" />
        <xsd:attribute name="qualifier" type="xsd:string" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicantInformation hr:ApplicantInformation 0 unbounded
License hr:License 0 (1)
SanctionDetail hr:SanctionDetail 0 unbounded
SubjectConfirmation hr:SubjectConfirmation 0 (1)
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type (Optional)
qualifier hr:qualifier (Optional)
