Definition Type: ComplexType
Name: SchoolData
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Enrollment.xsd
Abstract

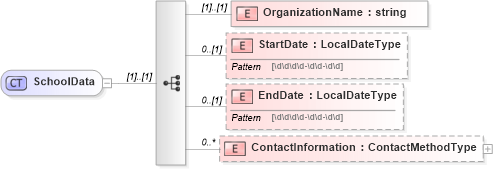

Collapse XSD Schema Diagram:
Drilldown into ContactInformation in schema enrollment_xsd Drilldown into EndDate in schema enrollment_xsd Drilldown into StartDate in schema enrollment_xsd Drilldown into OrganizationName in schema enrollment_xsdXSD Diagram of SchoolData in schema enrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SchoolData">
    <xsd:sequence>
        <xsd:element name="OrganizationName" type="xsd:string" />
        <xsd:element name="StartDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="EndDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="ContactInformation" type="ContactMethodType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrganizationName hr:OrganizationName (1) (1)
StartDate hr:StartDate 0 (1)
EndDate hr:EndDate 0 (1)
ContactInformation hr:ContactInformation 0 unbounded
Collapse Derivation Tree:
Collapse References:
hr:School
