Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Screening
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: BackgroundCheckStatusRequest.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Provides container for the basic screening summary information.

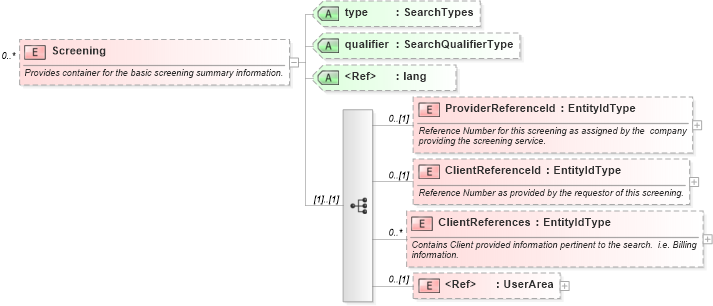

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into ClientReferences in schema backgroundcheckstatusrequest_xsd Drilldown into ClientReferenceId in schema backgroundcheckstatusrequest_xsd Drilldown into ProviderReferenceId in schema backgroundcheckstatusrequest_xsd Drilldown into lang in schema xml_xsd Drilldown into qualifier in schema backgroundcheckstatusrequest_xsd Drilldown into type in schema backgroundcheckstatusrequest_xsdXSD Diagram of Screening in schema backgroundcheckstatusrequest_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Screening" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Provides container for the basic screening summary information.  </xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ProviderReferenceId" type="EntityIdType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Reference Number for this screening as assigned by the  company providing the screening service.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ClientReferenceId" type="EntityIdType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Reference Number as provided by the requestor of this screening.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ClientReferences" type="EntityIdType" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Contains Client provided information pertinent to the search.  i.e. Billing information.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element ref="UserArea" minOccurs="0" />
        </xsd:sequence>
        <xsd:attribute name="type" type="SearchTypes" />
        <xsd:attribute name="qualifier" type="SearchQualifierType" />
        <xsd:attribute ref="xml:lang" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProviderReferenceId hr:ProviderReferenceId 0 (1)
ClientReferenceId hr:ClientReferenceId 0 (1)
ClientReferences hr:ClientReferences 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type hr:type (Optional)
qualifier hr:qualifier (Optional)
lang nsA:lang Optional
