<xsd:complexType name="ScreeningRequestType">
<xsd:sequence>
<xsd:element name="ReferenceId" type="EntityIdType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Reference Number associated with all screenings for the Search Subject specified in the PersonalData Element in the parent schema.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PackageId" type="EntityIdType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Identifies the search package agreed to by the trading partners that will be used as a basis for generating the searches. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PriorPersonalData" type="ScreeningPersonalDataType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The primary Search Subject information will be supplied in the PersonalData group element of the parent schema. The Purpose of this element is to provide additional personal data information that searches are to be performed upon. Note that any previous name information will be located here.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ClientReferences" type="EntityIdType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Contains Client provided information pertinent to the search. i.e. Billing information.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupportingDocumentation" type="DocumentationType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Root element to provide additional screening related information specific to all searchs for the specified Search Subject. i.e. Link to FAX image that contains the Search Subject information that the search package will be constructed from.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CopyToApplicant" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Indicates if Search Subject has requested a copy of the screening results.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="Screening" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Root element to provide additional screening related information specific to individual search types.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="ReferenceId" type="EntityIdType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Reference Number associated with this screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="QuestionSetId" type="EntityIdType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The question set identifier associated with this screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CountryCode" type="CountryCodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>ISO 3166 2 character country code identifying the country that the screeing applies to.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Region" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Represents the state, province, territory, etc. where the screening is to be performed.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ServiceLevel" type="ServiceLevelTypes" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Service level of the screening. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PermissiblePurpose" type="PermissiblePurposeQualifiers" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Specifies the purpose on the screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EndUser" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation> It specifies the name of the company that has requested the screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Vendor" type="VendorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Specifies the source of the screening information. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Duration" type="xsd:duration" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Specifies the duration of the screening.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ClientReferences" type="EntityIdType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Contains Client provided information pertinent to the search. i.e. Billing information.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Comments" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SupportingDocumentation" type="DocumentationType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Root element to provide additional screening related information regarding the specified search.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:choice minOccurs="0" maxOccurs="unbounded">
<xsd:element ref="SearchCriminal" minOccurs="0" />
<xsd:element ref="SearchDrugs" minOccurs="0" />
<xsd:element ref="SearchEducation" minOccurs="0" />
<xsd:element ref="SearchEmployment" minOccurs="0" />
<xsd:element ref="SearchLicense" minOccurs="0" />
<xsd:element ref="SearchMilitary" minOccurs="0" />
<xsd:element ref="SearchOther" minOccurs="0" />
<xsd:element ref="SearchReference" minOccurs="0" />
</xsd:choice>
<xsd:element ref="UserArea" minOccurs="0" />
</xsd:sequence>
<xsd:attribute name="type" type="SearchTypes" />
<xsd:attribute name="qualifier" type="SearchQualifierType" />
<xsd:attribute ref="xml:lang" use="optional" />
</xsd:complexType>
</xsd:element>
<xsd:element ref="UserArea" minOccurs="0" />
</xsd:sequence>
</xsd:complexType>
|

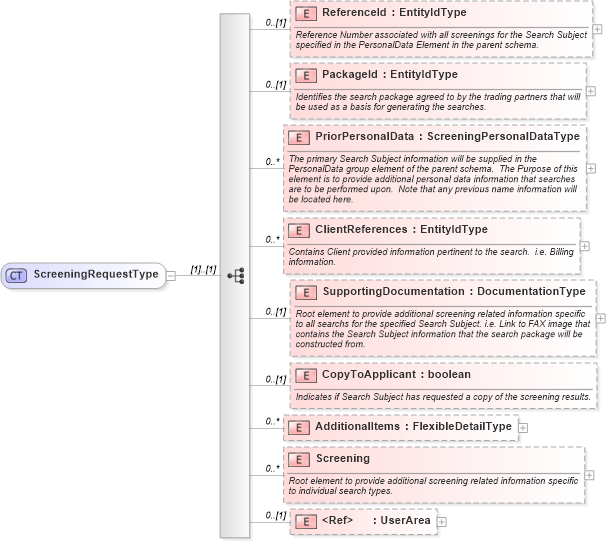

XSD Schema Diagram:
