Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: SearchCriteria
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:SearchCriteriaType
Containing Schema: SearchTypes.xsd
Abstract
Collapse XSD Schema Diagram:

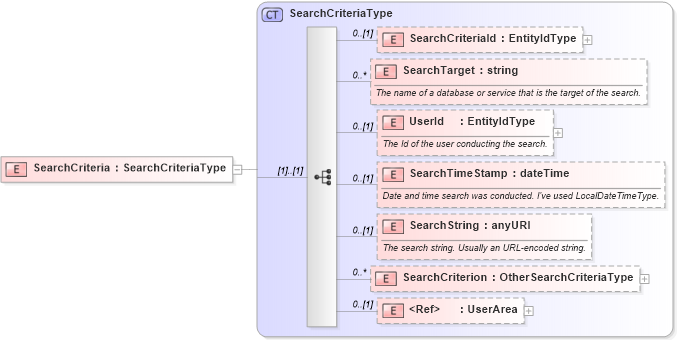

Drilldown into UserArea in schema userarea_xsd Drilldown into SearchCriterion in schema searchtypes_xsd Drilldown into SearchString in schema searchtypes_xsd Drilldown into SearchTimeStamp in schema searchtypes_xsd Drilldown into UserId in schema searchtypes_xsd Drilldown into SearchTarget in schema searchtypes_xsd Drilldown into SearchCriteriaId in schema searchtypes_xsd Drilldown into SearchCriteriaType in schema searchtypes_xsdXSD Diagram of SearchCriteria in schema searchtypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SearchCriteria" type="SearchCriteriaType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SearchCriteriaId hr:SearchCriteriaId 0 (1)
SearchTarget hr:SearchTarget 0 unbounded
UserId hr:UserId 0 (1)
SearchTimeStamp hr:SearchTimeStamp 0 (1)
SearchString hr:SearchString 0 (1)
SearchCriterion hr:SearchCriterion 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
