Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: SearchResultType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: SearchTypes.xsd
Abstract

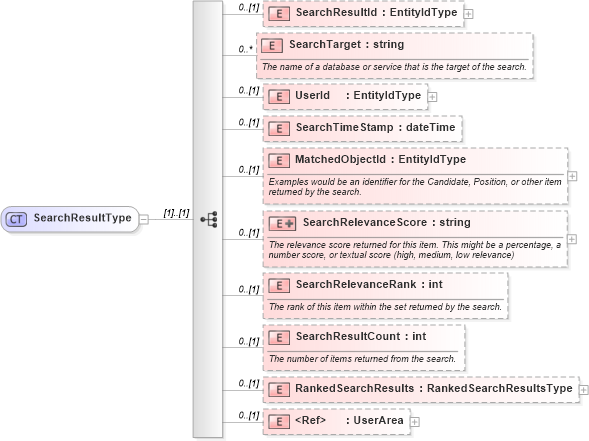

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into RankedSearchResults in schema searchtypes_xsd Drilldown into SearchResultCount in schema searchtypes_xsd Drilldown into SearchRelevanceRank in schema searchtypes_xsd Drilldown into SearchRelevanceScore in schema searchtypes_xsd Drilldown into MatchedObjectId in schema searchtypes_xsd Drilldown into SearchTimeStamp in schema searchtypes_xsd Drilldown into UserId in schema searchtypes_xsd Drilldown into SearchTarget in schema searchtypes_xsd Drilldown into SearchResultId in schema searchtypes_xsdXSD Diagram of SearchResultType in schema searchtypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SearchResultType">
    <xsd:sequence>
        <xsd:element name="SearchResultId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="SearchTarget" type="xsd:string" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>The name of a database or service that is the target of the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UserId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="SearchTimeStamp" type="xsd:dateTime" minOccurs="0" />
        <xsd:element name="MatchedObjectId" type="EntityIdType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Examples would be an identifier for the Candidate, Position, or other item returned by the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SearchRelevanceScore" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The relevance score returned for this item. This might be a percentage, a number score, or textual score (high, medium, low relevance)</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:string">
                        <xsd:attribute name="unitOfMeasure" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="SearchRelevanceRank" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The rank of this item within the set returned by the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SearchResultCount" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The number of items returned from the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RankedSearchResults" type="RankedSearchResultsType" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SearchResultId hr:SearchResultId 0 (1)
SearchTarget hr:SearchTarget 0 unbounded
UserId hr:UserId 0 (1)
SearchTimeStamp hr:SearchTimeStamp 0 (1)
MatchedObjectId hr:MatchedObjectId 0 (1)
SearchRelevanceScore hr:SearchRelevanceScore 0 (1)
SearchRelevanceRank hr:SearchRelevanceRank 0 (1)
SearchResultCount hr:SearchResultCount 0 (1)
RankedSearchResults hr:RankedSearchResults 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:SearchResult
