Definition Type: ComplexType
Name: SimpleAcknowledgementType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Acknowledgement.xsd
Abstract
Collapse XSD Schema Diagram:

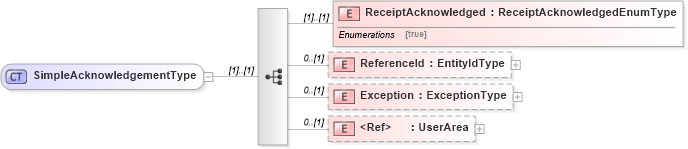

Drilldown into UserArea in schema userarea_xsd Drilldown into Exception in schema acknowledgement_xsd Drilldown into ReferenceId in schema acknowledgement_xsd Drilldown into ReceiptAcknowledged in schema acknowledgement_xsdXSD Diagram of SimpleAcknowledgementType in schema acknowledgement_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="SimpleAcknowledgementType">
    <xsd:sequence>
        <xsd:element name="ReceiptAcknowledged" type="ReceiptAcknowledgedEnumType" />
        <xsd:element name="ReferenceId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="Exception" type="ExceptionType" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReceiptAcknowledged hr:ReceiptAcknowledged (1) (1)
ReferenceId hr:ReferenceId 0 (1)
Exception hr:Exception 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:Acknowledgehr:Acknowledgement,
