Definition Type: Element
Name: SkillsAssessmentResults
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: BackgroundReports.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

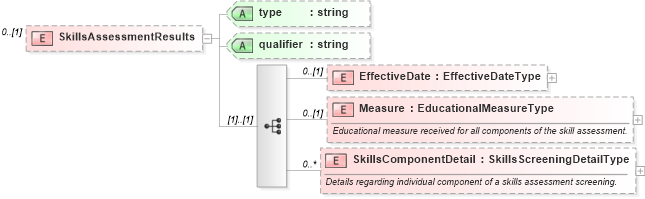

Collapse XSD Schema Diagram:
Drilldown into SkillsComponentDetail in schema backgroundreports_xsd Drilldown into Measure in schema backgroundreports_xsd Drilldown into EffectiveDate in schema backgroundreports_xsd Drilldown into qualifier in schema backgroundreports_xsd Drilldown into type in schema backgroundreports_xsdXSD Diagram of SkillsAssessmentResults in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SkillsAssessmentResults" minOccurs="0">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="EffectiveDate" type="EffectiveDateType" minOccurs="0" />
            <xsd:element name="Measure" type="EducationalMeasureType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Educational measure received for all components of the skill assessment.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="SkillsComponentDetail" type="SkillsScreeningDetailType" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Details regarding individual component of a skills assessment screening.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
        <xsd:attribute name="type" type="xsd:string" use="optional" />
        <xsd:attribute name="qualifier" type="xsd:string" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveDate hr:EffectiveDate 0 (1)
Measure hr:Measure 0 (1)
SkillsComponentDetail hr:SkillsComponentDetail 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type Optional
qualifier hr:qualifier Optional
