Definition Type: ComplexType
Name: StackRankType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EPMTypes.xsd
Abstract

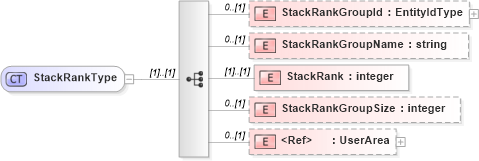

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into StackRankGroupSize in schema epmtypes_xsd Drilldown into StackRank in schema epmtypes_xsd Drilldown into StackRankGroupName in schema epmtypes_xsd Drilldown into StackRankGroupId in schema epmtypes_xsdXSD Diagram of StackRankType in schema epmtypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StackRankType">
    <xsd:sequence>
        <xsd:element name="StackRankGroupId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="StackRankGroupName" type="xsd:string" minOccurs="0" />
        <xsd:element name="StackRank" type="xsd:integer" />
        <xsd:element name="StackRankGroupSize" type="xsd:integer" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StackRankGroupId hr:StackRankGroupId 0 (1)
StackRankGroupName hr:StackRankGroupName 0 (1)
StackRank hr:StackRank (1) (1)
StackRankGroupSize hr:StackRankGroupSize 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:StackRankInfo
