Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StaffingAction
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:StaffingActionType
Containing Schema: StaffingAction.xsd
Abstract

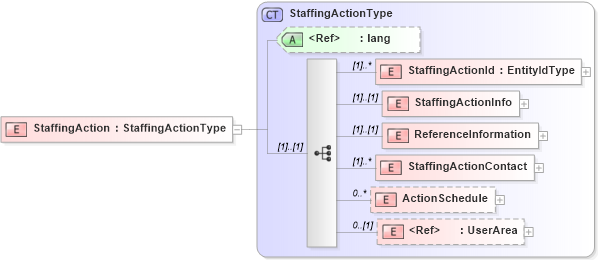

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into ActionSchedule in schema staffingaction_xsd Drilldown into StaffingActionContact in schema staffingaction_xsd Drilldown into ReferenceInformation in schema staffingaction_xsd Drilldown into StaffingActionInfo in schema staffingaction_xsd Drilldown into StaffingActionId in schema staffingaction_xsd Drilldown into lang in schema xml_xsd Drilldown into StaffingActionType in schema staffingaction_xsdXSD Diagram of StaffingAction in schema staffingaction_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StaffingAction" type="StaffingActionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StaffingActionId hr:StaffingActionId (1) unbounded
StaffingActionInfo hr:StaffingActionInfo (1) (1)
ReferenceInformation hr:ReferenceInformation (1) (1)
StaffingActionContact hr:StaffingActionContact (1) unbounded
ActionSchedule hr:ActionSchedule 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
