Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StaffingShift
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:StaffingShiftType
Containing Schema: StaffingShift.xsd
Abstract

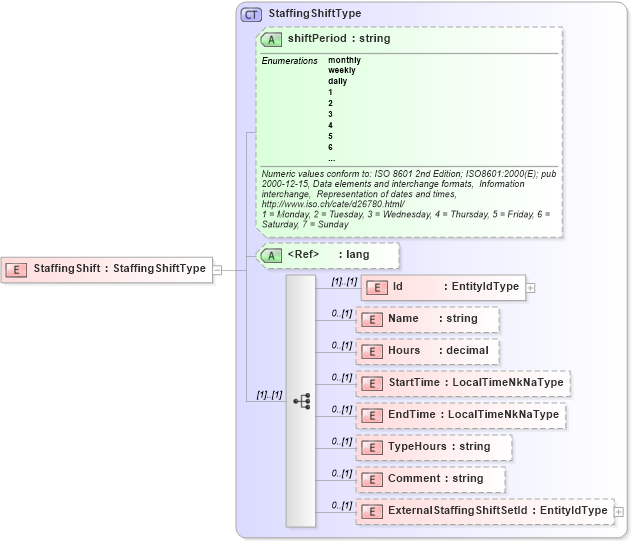

Collapse XSD Schema Diagram:
Drilldown into ExternalStaffingShiftSetId in schema staffingshift_xsd Drilldown into Comment in schema staffingshift_xsd Drilldown into TypeHours in schema staffingshift_xsd Drilldown into EndTime in schema staffingshift_xsd Drilldown into StartTime in schema staffingshift_xsd Drilldown into Hours in schema staffingshift_xsd Drilldown into Name in schema staffingshift_xsd Drilldown into Id in schema staffingshift_xsd Drilldown into lang in schema xml_xsd Drilldown into shiftPeriod in schema staffingshift_xsd Drilldown into StaffingShiftType in schema staffingshift_xsdXSD Diagram of StaffingShift in schema staffingshift_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StaffingShift" type="StaffingShiftType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id (1) (1)
Name hr:Name 0 (1)
Hours hr:Hours 0 (1)
StartTime hr:StartTime 0 (1)
EndTime hr:EndTime 0 (1)
TypeHours hr:TypeHours 0 (1)
Comment hr:Comment 0 (1)
ExternalStaffingShiftSetId hr:ExternalStaffingShiftSetId 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
shiftPeriod hr:shiftPeriod (Optional)
lang nsA:lang (Optional)
Collapse Derivation Tree:
