Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StaffingWorkSiteEnvironmentType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: StaffingWorkSiteEnvironment.xsd
Abstract

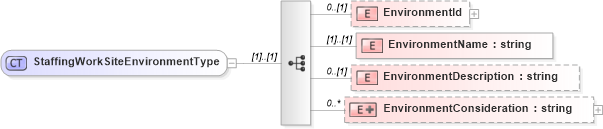

Collapse XSD Schema Diagram:
Drilldown into EnvironmentConsideration in schema staffingworksiteenvironment_xsd Drilldown into EnvironmentDescription in schema staffingworksiteenvironment_xsd Drilldown into EnvironmentName in schema staffingworksiteenvironment_xsd Drilldown into EnvironmentId in schema staffingworksiteenvironment_xsdXSD Diagram of StaffingWorkSiteEnvironmentType in schema staffingworksiteenvironment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StaffingWorkSiteEnvironmentType">
    <xsd:sequence>
        <xsd:element name="EnvironmentId" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Id" type="xsd:string" />
                    <xsd:element name="Domain" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="IdIssuer" type="xsd:string" minOccurs="0" />
                                <xsd:element name="IdType" type="xsd:string" minOccurs="0" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="EnvironmentName" type="xsd:string" />
        <xsd:element name="EnvironmentDescription" type="xsd:string" minOccurs="0" />
        <xsd:element name="EnvironmentConsideration" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:string">
                        <xsd:attribute name="suppliedByOrganization" type="xsd:boolean" />
                        <xsd:attribute name="typeConsideration" use="required">
                            <xsd:simpleType>
                                <xsd:restriction base="xsd:string">
                                    <xsd:enumeration value="General" />
                                    <xsd:enumeration value="Physical" />
                                    <xsd:enumeration value="SafetyEquipment" />
                                    <xsd:enumeration value="DressCode" />
                                    <xsd:enumeration value="SafetyAndHygiene" />
                                </xsd:restriction>
                            </xsd:simpleType>
                        </xsd:attribute>
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EnvironmentId hr:EnvironmentId 0 (1)
EnvironmentName hr:EnvironmentName (1) (1)
EnvironmentDescription hr:EnvironmentDescription 0 (1)
EnvironmentConsideration hr:EnvironmentConsideration 0 unbounded
Collapse Derivation Tree:
Collapse References:
hr:StaffingWorkSiteEnvironmenthr:WorkSiteEnvironment,
