Definition Type: ComplexType
Name: StockPlanParticipantType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: StockPlanParticipant.xsd
Abstract

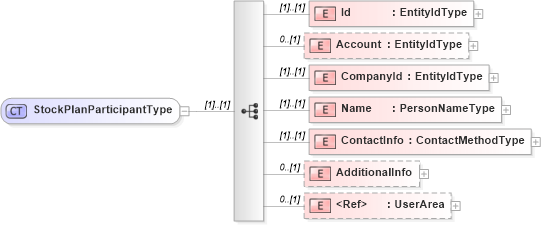

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into AdditionalInfo in schema stockplanparticipant_xsd Drilldown into ContactInfo in schema stockplanparticipant_xsd Drilldown into Name in schema stockplanparticipant_xsd Drilldown into CompanyId in schema stockplanparticipant_xsd Drilldown into Account in schema stockplanparticipant_xsd Drilldown into Id in schema stockplanparticipant_xsdXSD Diagram of StockPlanParticipantType in schema stockplanparticipant_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StockPlanParticipantType">
    <xsd:sequence>
        <xsd:element name="Id" type="EntityIdType" />
        <xsd:element name="Account" type="EntityIdType" minOccurs="0" />
        <xsd:element name="CompanyId" type="EntityIdType" />
        <xsd:element name="Name" type="PersonNameType" />
        <xsd:element name="ContactInfo" type="ContactMethodType" />
        <xsd:element name="AdditionalInfo" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="DateOfBirth" type="LocalDateType" minOccurs="0" />
                    <xsd:element name="Nationality" type="CountryCodeType" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="HireDate" type="LocalDateType" minOccurs="0" />
                    <xsd:element name="EmploymentInfo" minOccurs="0">
                        <xsd:complexType mixed="true">
                            <xsd:choice>
                                <xsd:element name="FullTimeEquivalence" type="xsd:decimal" />
                                <xsd:element name="WorktimeInfo" maxOccurs="unbounded">
                                    <xsd:complexType>
                                        <xsd:sequence>
                                            <xsd:element name="Duration" type="xsd:duration" />
                                            <xsd:element name="Period" type="xsd:duration" />
                                        </xsd:sequence>
                                    </xsd:complexType>
                                </xsd:element>
                            </xsd:choice>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Termination" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="Date" type="LocalDateType" />
                                <xsd:element name="Reason" type="xsd:string" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Employee" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:boolean">
                                    <xsd:attribute name="validFrom" type="LocalDateType" />
                                    <xsd:attribute name="validTo" type="LocalDateType" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Director" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:boolean">
                                    <xsd:attribute name="validFrom" type="LocalDateType" />
                                    <xsd:attribute name="validTo" type="LocalDateType" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="Insider" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:boolean">
                                    <xsd:attribute name="validFrom" type="LocalDateType" />
                                    <xsd:attribute name="validTo" type="LocalDateType" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="PercentOwner" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:simpleContent>
                                <xsd:extension base="xsd:decimal">
                                    <xsd:attribute name="validFrom" type="LocalDateType" />
                                    <xsd:attribute name="validTo" type="LocalDateType" />
                                </xsd:extension>
                            </xsd:simpleContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="WorkLocation" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="CountryCode" type="CountryCodeType" minOccurs="0" />
                                <xsd:element name="Region" type="xsd:string" minOccurs="0" />
                                <xsd:element name="Municipality" type="xsd:string" minOccurs="0" />
                                <xsd:element name="PostalCode" type="xsd:string" minOccurs="0" />
                            </xsd:sequence>
                            <xsd:attribute name="validFrom" type="LocalDateType" />
                            <xsd:attribute name="validTo" type="LocalDateType" />
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="TaxInfo" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="TaxType" type="xsd:string" />
                                <xsd:element name="TaxationLocation">
                                    <xsd:complexType>
                                        <xsd:sequence>
                                            <xsd:element name="CountryCode" type="CountryCodeType" minOccurs="0" />
                                            <xsd:element name="Region" type="xsd:string" minOccurs="0" />
                                            <xsd:element name="Municipality" type="xsd:string" minOccurs="0" />
                                            <xsd:element name="PostalCode" type="xsd:string" minOccurs="0" />
                                        </xsd:sequence>
                                    </xsd:complexType>
                                </xsd:element>
                                <xsd:element name="Percentage" type="xsd:decimal" />
                            </xsd:sequence>
                            <xsd:attribute name="validFrom" type="LocalDateType" />
                            <xsd:attribute name="validTo" type="LocalDateType" />
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id (1) (1)
Account hr:Account 0 (1)
CompanyId hr:CompanyId (1) (1)
Name hr:Name (1) (1)
ContactInfo hr:ContactInfo (1) (1)
AdditionalInfo hr:AdditionalInfo 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:StockPlanParticipant
