Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StructuredXMLResumeType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Resume.xsd
Abstract

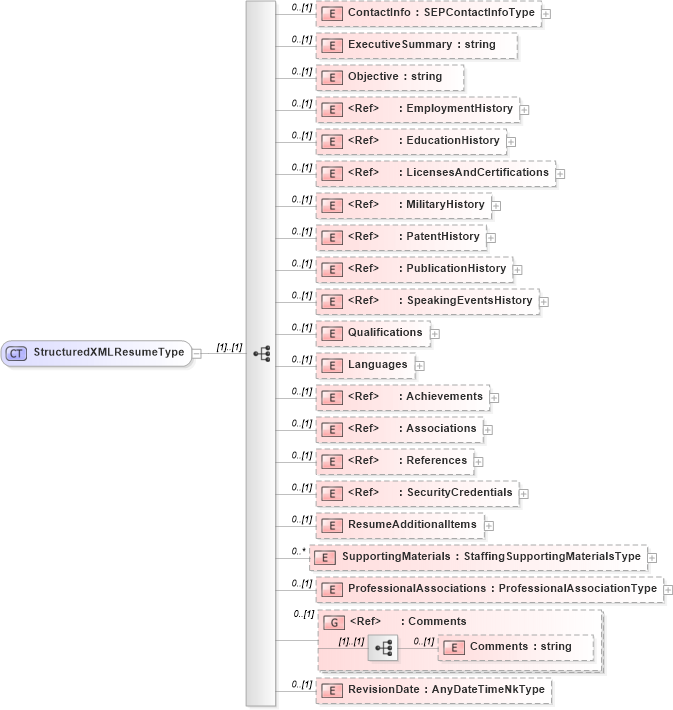

Collapse XSD Schema Diagram:
Drilldown into RevisionDate in schema resume_xsd Drilldown into Comments in schema resume_xsd Drilldown into Comments in schema resume_xsd Drilldown into ProfessionalAssociations in schema resume_xsd Drilldown into SupportingMaterials in schema resume_xsd Drilldown into ResumeAdditionalItems in schema resume_xsd Drilldown into SecurityCredentials in schema licensesandcertifications_xsd Drilldown into References in schema sharedstaffingmodules_xsd Drilldown into Associations in schema sharedstaffingmodules_xsd Drilldown into Achievements in schema sharedstaffingmodules_xsd Drilldown into Languages in schema resume_xsd Drilldown into Qualifications in schema resume_xsd Drilldown into SpeakingEventsHistory in schema speakingeventshistory_xsd Drilldown into PublicationHistory in schema publicationhistory_xsd Drilldown into PatentHistory in schema patenthistory_xsd Drilldown into MilitaryHistory in schema militaryhistory_xsd Drilldown into LicensesAndCertifications in schema licensesandcertifications_xsd Drilldown into EducationHistory in schema educationhistory_xsd Drilldown into EmploymentHistory in schema employmenthistory_xsd Drilldown into Objective in schema resume_xsd Drilldown into ExecutiveSummary in schema resume_xsd Drilldown into ContactInfo in schema resume_xsdXSD Diagram of StructuredXMLResumeType in schema resume_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StructuredXMLResumeType">
    <xsd:sequence>
        <xsd:element name="ContactInfo" type="SEPContactInfoType" minOccurs="0" />
        <xsd:element name="ExecutiveSummary" type="xsd:string" minOccurs="0" />
        <xsd:element name="Objective" type="xsd:string" minOccurs="0" />
        <xsd:element ref="EmploymentHistory" minOccurs="0" />
        <xsd:element ref="EducationHistory" minOccurs="0" />
        <xsd:element ref="LicensesAndCertifications" minOccurs="0" />
        <xsd:element ref="MilitaryHistory" minOccurs="0" />
        <xsd:element ref="PatentHistory" minOccurs="0" />
        <xsd:element ref="PublicationHistory" minOccurs="0" />
        <xsd:element ref="SpeakingEventsHistory" minOccurs="0" />
        <xsd:element name="Qualifications" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="QualificationSummary" type="xsd:string" minOccurs="0" />
                    <xsd:element ref="Competency" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Languages" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element ref="Language" maxOccurs="unbounded" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="Achievements" minOccurs="0" />
        <xsd:element ref="Associations" minOccurs="0" />
        <xsd:element ref="References" minOccurs="0" />
        <xsd:element ref="SecurityCredentials" minOccurs="0" />
        <xsd:element name="ResumeAdditionalItems" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element ref="ResumeAdditionalItem" maxOccurs="unbounded" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="SupportingMaterials" type="StaffingSupportingMaterialsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="ProfessionalAssociations" type="ProfessionalAssociationType" minOccurs="0" />
        <xsd:group ref="Comments" minOccurs="0" />
        <xsd:element name="RevisionDate" type="AnyDateTimeNkType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContactInfo hr:ContactInfo 0 (1)
ExecutiveSummary hr:ExecutiveSummary 0 (1)
Objective hr:Objective 0 (1)
EmploymentHistory hr:EmploymentHistory 0 (1)
EducationHistory hr:EducationHistory 0 (1)
LicensesAndCertifications hr:LicensesAndCertifications 0 (1)
MilitaryHistory hr:MilitaryHistory 0 (1)
PatentHistory hr:PatentHistory 0 (1)
PublicationHistory hr:PublicationHistory 0 (1)
SpeakingEventsHistory hr:SpeakingEventsHistory 0 (1)
Qualifications hr:Qualifications 0 (1)
Languages hr:Languages 0 (1)
Achievements hr:Achievements 0 (1)
Associations hr:Associations 0 (1)
References hr:References 0 (1)
SecurityCredentials hr:SecurityCredentials 0 (1)
ResumeAdditionalItems hr:ResumeAdditionalItems 0 (1)
SupportingMaterials hr:SupportingMaterials 0 unbounded
ProfessionalAssociations hr:ProfessionalAssociations 0 (1)
Comments hr:Comments 0 (1)
RevisionDate hr:RevisionDate 0 (1)
<xs:group> hr:Comments 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:StructuredXMLResume
