Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: TaxCreditInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: NewHire.xsd
Abstract
Collapse XSD Schema Diagram:

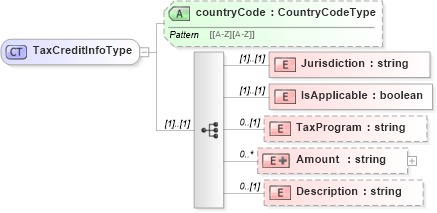

Drilldown into Description in schema newhire_xsd Drilldown into Amount in schema newhire_xsd Drilldown into TaxProgram in schema newhire_xsd Drilldown into IsApplicable in schema newhire_xsd Drilldown into Jurisdiction in schema newhire_xsd Drilldown into countryCode in schema newhire_xsdXSD Diagram of TaxCreditInfoType in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="TaxCreditInfoType">
    <xsd:sequence>
        <xsd:element name="Jurisdiction" type="xsd:string" />
        <xsd:element name="IsApplicable" type="xsd:boolean" />
        <xsd:element name="TaxProgram" type="xsd:string" minOccurs="0" />
        <xsd:element name="Amount" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:string">
                        <xsd:attribute name="currencyCode" type="CurrencyCodeType" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Description" type="xsd:string" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="countryCode" type="CountryCodeType" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Jurisdiction hr:Jurisdiction (1) (1)
IsApplicable hr:IsApplicable (1) (1)
TaxProgram hr:TaxProgram 0 (1)
Amount hr:Amount 0 unbounded
Description hr:Description 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
countryCode hr:countryCode (Optional)
Collapse Derivation Tree:
Collapse References:
hr:TaxCreditInfo
