Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: TaxInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: StockPlanParticipant.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

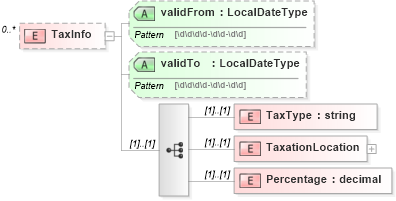

Drilldown into Percentage in schema stockplanparticipant_xsd Drilldown into TaxationLocation in schema stockplanparticipant_xsd Drilldown into TaxType in schema stockplanparticipant_xsd Drilldown into validTo in schema stockplanparticipant_xsd Drilldown into validFrom in schema stockplanparticipant_xsdXSD Diagram of TaxInfo in schema stockplanparticipant_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="TaxInfo" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="TaxType" type="xsd:string" />
            <xsd:element name="TaxationLocation">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="CountryCode" type="CountryCodeType" minOccurs="0" />
                        <xsd:element name="Region" type="xsd:string" minOccurs="0" />
                        <xsd:element name="Municipality" type="xsd:string" minOccurs="0" />
                        <xsd:element name="PostalCode" type="xsd:string" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="Percentage" type="xsd:decimal" />
        </xsd:sequence>
        <xsd:attribute name="validFrom" type="LocalDateType" />
        <xsd:attribute name="validTo" type="LocalDateType" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TaxType hr:TaxType (1) (1)
TaxationLocation hr:TaxationLocation (1) (1)
Percentage hr:Percentage (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom (Optional)
validTo hr:validTo (Optional)
