Documentation for HR-XML - Human Resources XML
Definition Type: Group
Name: TelcomNumberGroup
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: TelcomNumber.xsd
Collapse XSD Schema Diagram:

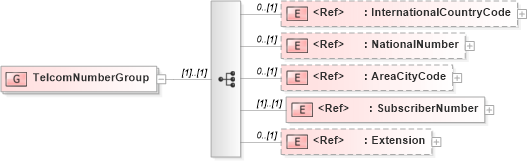

Drilldown into Extension in schema telcomnumber_xsd Drilldown into SubscriberNumber in schema telcomnumber_xsd Drilldown into AreaCityCode in schema telcomnumber_xsd Drilldown into NationalNumber in schema telcomnumber_xsd Drilldown into InternationalCountryCode in schema telcomnumber_xsdXSD Diagram of TelcomNumberGroup in schema telcomnumber_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:group name="TelcomNumberGroup">
    <xsd:sequence>
        <xsd:element ref="InternationalCountryCode" minOccurs="0" />
        <xsd:element ref="NationalNumber" minOccurs="0" />
        <xsd:element ref="AreaCityCode" minOccurs="0" />
        <xsd:element ref="SubscriberNumber" />
        <xsd:element ref="Extension" minOccurs="0" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InternationalCountryCode hr:InternationalCountryCode 0 (1)
NationalNumber hr:NationalNumber 0 (1)
AreaCityCode hr:AreaCityCode 0 (1)
SubscriberNumber hr:SubscriberNumber (1) (1)
Extension hr:Extension 0 (1)
