Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: TerminationInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndTerminationInfoType
Containing Schema: EmploymentInfoTypes.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

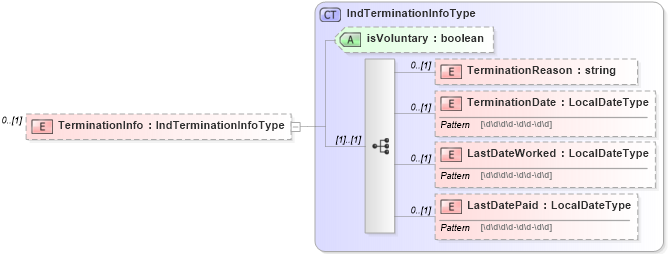

Drilldown into LastDatePaid in schema employmentinfotypes_xsd Drilldown into LastDateWorked in schema employmentinfotypes_xsd Drilldown into TerminationDate in schema employmentinfotypes_xsd Drilldown into TerminationReason in schema employmentinfotypes_xsd Drilldown into isVoluntary in schema employmentinfotypes_xsd Drilldown into IndTerminationInfoType in schema employmentinfotypes_xsdXSD Diagram of TerminationInfo in schema employmentinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="TerminationInfo" type="IndTerminationInfoType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TerminationReason hr:TerminationReason 0 (1)
TerminationDate hr:TerminationDate 0 (1)
LastDateWorked hr:LastDateWorked 0 (1)
LastDatePaid hr:LastDatePaid 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
isVoluntary hr:isVoluntary (Optional)
Collapse Derivation Tree:
