<xsd:complexType name="TimeCardType">
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="ReportedResource">
<xsd:complexType>
<xsd:choice>
<xsd:element name="Person" type="TimeCardPersonType" />
<xsd:element name="Resource">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ResourceName" type="xsd:string" minOccurs="0" />
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" />
</xsd:complexType>
</xsd:element>
</xsd:choice>
</xsd:complexType>
</xsd:element>
<xsd:element name="ReportedTime" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="PeriodStartDate" type="AnyDateTimeType" />
<xsd:element name="PeriodEndDate" type="AnyDateTimeType" />
<xsd:element name="ReportedPersonAssignment" minOccurs="0">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:choice maxOccurs="unbounded">
<xsd:element name="TimeInterval">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="StartDateTime" type="AnyDateTimeType" />
<xsd:choice>
<xsd:sequence>
<xsd:element name="EndDateTime" type="AnyDateTimeType" />
<xsd:element name="Duration" type="TimeCardDuration" minOccurs="0" />
</xsd:sequence>
<xsd:element name="Duration" type="TimeCardDuration" />
</xsd:choice>
<xsd:element name="PieceWork" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Piece">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="PieceValue" type="xsd:string" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="Quantity">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="unitOfMeasure" type="xsd:string" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="RateOrAmount" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="period" type="xsd:string" />
<xsd:attribute name="multiplier" type="xsd:double" />
<xsd:attribute name="toBeBilled" type="xsd:boolean" />
<xsd:attribute name="toBePaid" type="xsd:boolean" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Allowance" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="StartDate" type="AnyDateTimeType" minOccurs="0" />
<xsd:element name="EndDate" type="AnyDateTimeType" minOccurs="0" />
<xsd:element name="Amount" minOccurs="0">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Quantity" type="xsd:double" minOccurs="0" />
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="billable" type="xsd:boolean" />
<xsd:attribute name="actionCode" type="ActionCodeType" />
</xsd:complexType>
</xsd:element>
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="dayAssignment" type="DayAssignmentType" />
<xsd:attribute name="billable" type="xsd:boolean" />
<xsd:attribute name="actionCode" type="ActionCodeType" />
</xsd:complexType>
</xsd:element>
<xsd:element name="TimeEvent">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="EventDateTime" type="AnyDateTimeType" />
<xsd:element name="RateOrAmount" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="period" type="xsd:string" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="dayAssignment" type="DayAssignmentType" />
<xsd:attribute name="billable" type="xsd:boolean" />
<xsd:attribute name="actionCode" type="ActionCodeType" />
</xsd:complexType>
</xsd:element>
<xsd:element name="Expense">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="ExpenseDate" type="AnyDateTimeType" />
<xsd:element name="ExpenseAmount">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="billable" type="xsd:boolean" />
<xsd:attribute name="actionCode" type="ActionCodeType" />
</xsd:complexType>
</xsd:element>
<xsd:element name="Allowance">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Id" type="EntityIdType" minOccurs="0" />
<xsd:element name="StartDate" type="AnyDateTimeType" minOccurs="0" />
<xsd:element name="EndDate" type="AnyDateTimeType" minOccurs="0" />
<xsd:element name="Amount" minOccurs="0">
<xsd:complexType>
<xsd:simpleContent>
<xsd:extension base="xsd:double">
<xsd:attribute name="currency" type="CurrencyCodeType" use="required" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Quantity" type="xsd:double" minOccurs="0" />
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
<xsd:attribute name="type" type="xsd:string" use="required" />
<xsd:attribute name="billable" type="xsd:boolean" />
<xsd:attribute name="actionCode" type="ActionCodeType" />
</xsd:complexType>
</xsd:element>
</xsd:choice>
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
</xsd:sequence>
<xsd:attribute name="status" type="xsd:string">
<xsd:annotation>
<xsd:documentation>The preferred statuses are: Raw, Processed, Submitted, Rejected, Approved, Final. Please look at the documentation for definitions.</xsd:documentation>
</xsd:annotation>
</xsd:attribute>
</xsd:complexType>
</xsd:element>
<xsd:element name="SubmitterInfo" type="SubmitterInfoType" minOccurs="0" />
<xsd:element name="ApprovalInfo" type="ApprovalInfoType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="AdditionalData" type="AdditionalDataType" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="UserArea" minOccurs="0" />
</xsd:sequence>
<xsd:attribute ref="xml:lang" />
</xsd:complexType>
|

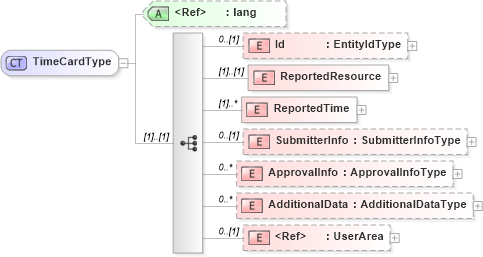

XSD Schema Diagram:
