Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: TimePeriodAny
Namespace: http://www.openapplications.org/oagis
Containing Schema: Invoice.xsd
Abstract

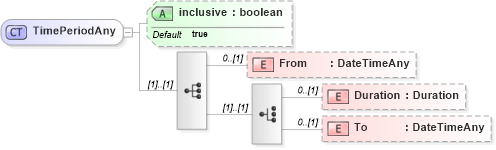

Collapse XSD Schema Diagram:
Drilldown into To in schema invoice_xsd Drilldown into Duration in schema invoice_xsd Drilldown into From in schema invoice_xsd Drilldown into inclusive in schema invoice_xsdXSD Diagram of TimePeriodAny in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="TimePeriodAny">
    <xs:sequence>
        <xs:element name="From" type="DateTimeAny" minOccurs="0" />
        <xs:choice>
            <xs:element name="Duration" type="Duration" minOccurs="0" />
            <xs:element name="To" type="DateTimeAny" minOccurs="0" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="inclusive" type="xs:boolean" use="optional" default="true" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
From nsC:From 0 (1)
Duration nsC:Duration 0 (1)
To nsC:To 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
inclusive nsC:inclusive true Optional
Collapse Derivation Tree:
Collapse References:
nsC:AccountingPeriod, nsC:EffectivePeriod, nsC:EffectivePeriod, nsC:EffectivePeriodnsC:EffectiveTimePeriod, nsC:PayrollPeriod,
