Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: USLocalizedPositionClassificationType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: USLocalizations.xsd
Abstract
Collapse XSD Schema Diagram:

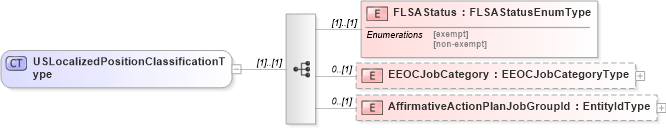

Drilldown into AffirmativeActionPlanJobGroupId in schema uslocalizations_xsd4 Drilldown into EEOCJobCategory in schema uslocalizations_xsd4 Drilldown into FLSAStatus in schema uslocalizations_xsd4XSD Diagram of USLocalizedPositionClassificationType in schema uslocalizations_xsd4 (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="USLocalizedPositionClassificationType">
    <xsd:sequence>
        <xsd:element name="FLSAStatus" type="FLSAStatusEnumType" />
        <xsd:element name="EEOCJobCategory" type="EEOCJobCategoryType" minOccurs="0" />
        <xsd:element name="AffirmativeActionPlanJobGroupId" type="EntityIdType" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FLSAStatus hr:FLSAStatus (1) (1)
EEOCJobCategory hr:EEOCJobCategory 0 (1)
AffirmativeActionPlanJobGroupId hr:AffirmativeActionPlanJobGroupId 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:USClassification
