Definition Type: ComplexType
Name: WorkSiteEnvironmentType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: WorkSite.xsd
Abstract
Collapse XSD Schema Diagram:

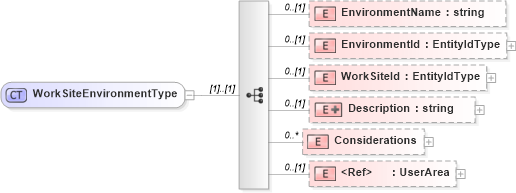

Drilldown into UserArea in schema userarea_xsd Drilldown into Considerations in schema worksite_xsd Drilldown into Description in schema worksite_xsd Drilldown into WorkSiteId in schema worksite_xsd Drilldown into EnvironmentId in schema worksite_xsd Drilldown into EnvironmentName in schema worksite_xsdXSD Diagram of WorkSiteEnvironmentType in schema worksite_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="WorkSiteEnvironmentType">
    <xsd:sequence>
        <xsd:element name="EnvironmentName" type="xsd:string" minOccurs="0" />
        <xsd:element name="EnvironmentId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="WorkSiteId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="Description" minOccurs="0">
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:string">
                        <xsd:attribute ref="xml:lang" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Considerations" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="General" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="Physical" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="SafetyEquipment" type="SafetyEquipmentType" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element name="DressCode" type="DressCodeType" minOccurs="0" maxOccurs="unbounded" />
                    <xsd:element ref="UserArea" minOccurs="0" />
                </xsd:sequence>
                <xsd:attribute ref="xml:lang" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EnvironmentName hr:EnvironmentName 0 (1)
EnvironmentId hr:EnvironmentId 0 (1)
WorkSiteId hr:WorkSiteId 0 (1)
Description hr:Description 0 (1)
Considerations hr:Considerations 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:WorkSiteEnvironment
