Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: ActualBedload
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:actualBedloadType
Containing Schema: mailxml_120308.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

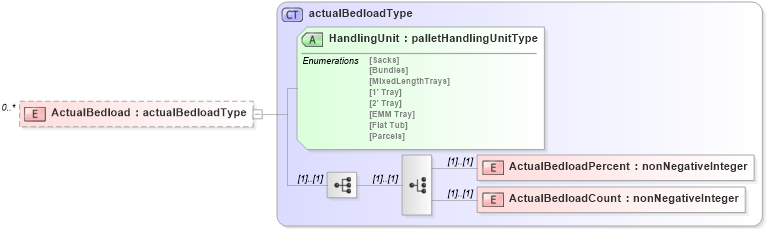

Drilldown into ActualBedloadCount in schema mailxml_120308_xsd Drilldown into ActualBedloadPercent in schema mailxml_120308_xsd Drilldown into HandlingUnit in schema mailxml_120308_xsd Drilldown into actualBedloadType in schema mailxml_120308_xsdXSD Diagram of ActualBedload in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="ActualBedload" type="mailxml:actualBedloadType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActualBedloadPercent mailxml:ActualBedloadPercent (1) (1)
ActualBedloadCount mailxml:ActualBedloadCount (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
HandlingUnit mailxml:HandlingUnit Required
Collapse Derivation Tree:
